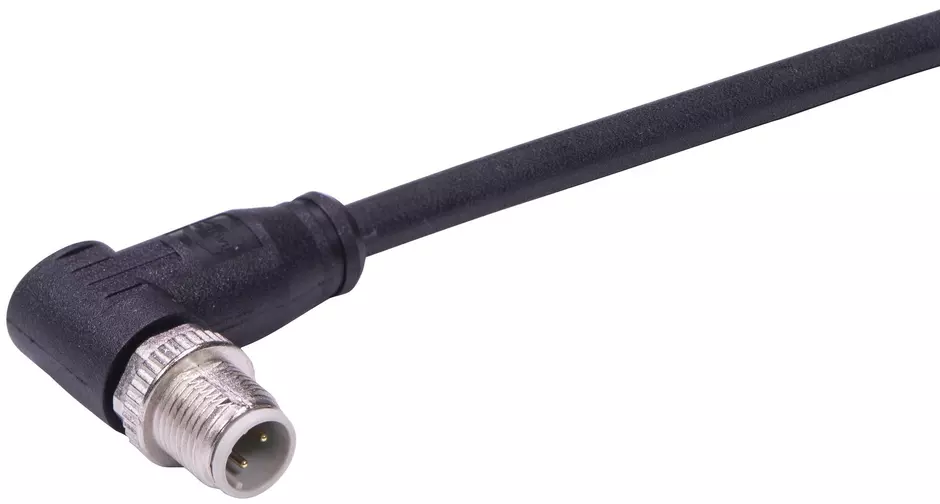

M12 D-cod 4-pol an/- m/- Rail 3,5m

Article No.: 09 48 800 0011 035

Image is for illustration purposes only. Please refer to product description.

Cable assemblies

Article No.: 09 48 800 0011 035

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on one side

Copper cable (round)

for railway applications

Cable length: 3.5 m

Parts list specification

Type of cable	Ha-Vis EtherRail 4xAWG22/7 bk CAT5 Show details
Connector 1	M12 D-code male angled overmolded Show details

Identification

Version

Technical characteristics

Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Limiting temperature	-40 ... +85 °C unmoved
Limiting temperature	-25 ... +70 °C moved
Cable diameter	6.6 mm ± 0.2 mm
Minimum bending radius	6x Cable diameter (repeated bending)
Minimum bending radius	5x Cable diameter (singular bending)
Impedance	‌100 Ω ±5 %

Material properties

Material (cable)	Elastomer
Colour (cable)	Black
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
REACH SVHC substances	Triphenyl phosphate
ECHA SCIP number	760691ac-b4d2-427c-9996-5886190b813b
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Specifications	EN 45545-2

Commercial data

Packaging size	1
Net weight	250 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140882898
eCl@ss	27060390 Ready-made data cable (unspecified)
ETIM	EC002599
UNSPSC 24.0	26121600
