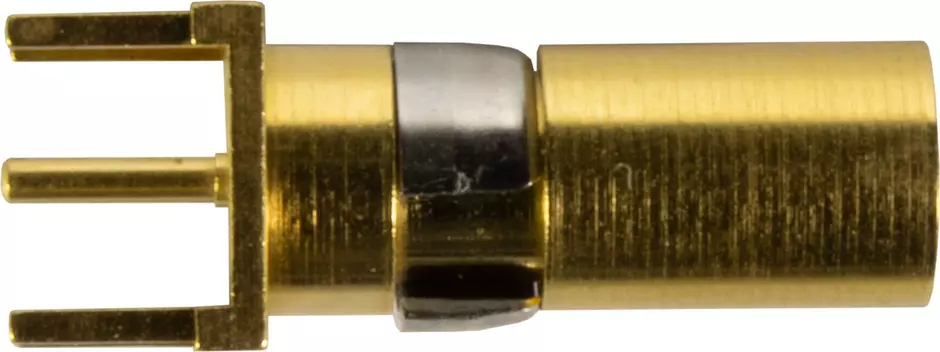

DIN-Signal coax m, solder/crimp 50Ohm

Article No.: 09 03 000 6165

Image is for illustration purposes only. Please refer to product description.

Coaxial contact

Article No.: 09 03 000 6165

to see prices and availability.

to see prices and availability.

Coaxial contact

Straight

Rated current: ≤1.5 A

Male contact for female connectors

Copper alloy

Noble metal over Ni Mating side

Identification

Version

Termination method	Solder termination
Termination method	PCB solder termination
Gender	Male contact for female connectors
Connection type	Motherboard to daughtercard
	Mezzanine
	PCB to cable
Manufacturing process	Turned contacts

Technical characteristics

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	no requirements (flammable mass < 10g)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Material (locking)	Copper alloy

Specifications and approvals

Specifications	DIN 41626

Commercial data

European customs tariff number	85366990
Packaging size	30
Net weight	1.4 g
Country of origin	Hungary
GTIN	5713140003996
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
