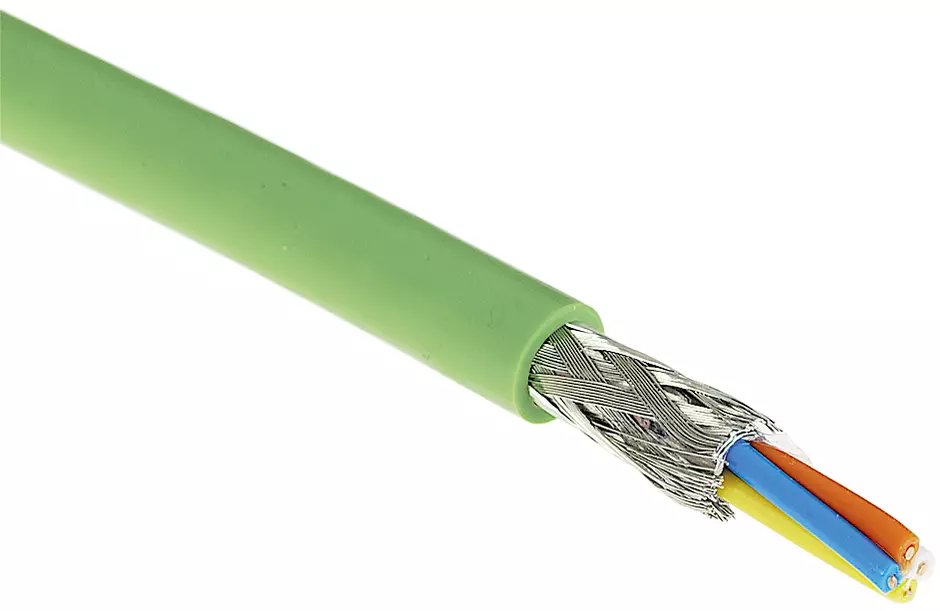

HAR PROFINET Typ C 4xAWG22/7 trail. 100m

Article No.: 09 45 600 0101

Image is for illustration purposes only. Please refer to product description.

Copper cable (round)

Article No.: 09 45 600 0101

to see prices and availability.

to see prices and availability.

Copper cable (round)

Flame retardant, Oil resistant, UV resistant

4x AWG 22/7

PUR (polyurethane)

Cable length: 100 m

Cat. 5 Class D up to 100 MHz

Identification

Version

Technical characteristics

Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Limiting temperature	-40 ... +70 °C unmoved
Limiting temperature	-20 ... +60 °C moved
Minimum bending radius	7x Cable diameter (repeated bending)
Minimum bending radius	3x Cable diameter (singular bending)
Drag chain compatible	Yes
Bending cycles	≥ 3.000.000 & traversing distance ≤ 0.2 m & speed ≤ 4 m/s & acceleration ≤ 4 m/s²
Tensile strength	≤150 N
Coupling attenuation @ 20 °C / 10 MHz	‌ 20 mΩ/m
Conductor resistance @ 20 °C	≤120 Ω/km
Insulation resistance @ 20 °C	≥ 500 MΩ x km
Signal run time @ 20 °C	≤ 5.3 ns/m
Impedance @ 100 MHz	‌100 Ω ±5 %

Material properties

Material (cable)	PUR (polyurethane)
Colour (cable)	Green
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Specifications	EN 13602
	EN 50290-2-23
	F45052-F5100
	IEC 60332-1-2 Flame retardancy
	EN 60811-2-1 Oil resistance
	UN/ECE-R 118 fire protection for rolling stock
PROFINET	Yes

Commercial data

Packaging size	1
Net weight	6,355 g
Country of origin	Germany
European customs tariff number	85444995
GTIN	5713140061750
eCl@ss	27061801 Data and communication cable (copper)
ETIM	EC003249
UNSPSC 24.0	26121609
