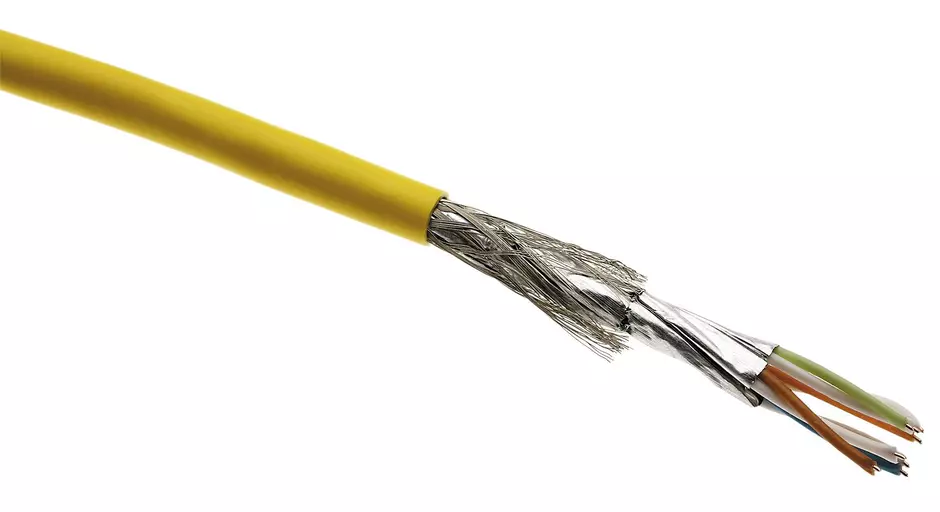

HARTING IE Cat.7A 4x2xAWG26/7 PUR, 1000m

Article No.: 09 45 600 0751

Image is for illustration purposes only. Please refer to product description.

Copper cable (round)

Article No.: 09 45 600 0751

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Copper cable (round)

Flame retardant, Halogen-free, Oil resistant

4x 2x AWG 26/7

PUR (polyurethane)

Cable length: 1,000 m

Cat. 7A Class FA up to 1,000 MHz

Identification

Category	System cabling
Element	Bulk cables
Specification	Not assembled
Type of cable	Copper cable (round)
Description of the cable	Flame retardant
	Halogen-free
	Oil resistant
Printing on cable	HARTING INDUSTRIAL CABLE S/FTP CAT 7A PUR 4x2xAWG26/7$094560001090000$ $BA-Nr.$ $m-sign.$
Features	Transmission characteristics up to 1200 MHz.

Version

Technical characteristics

Rated voltage	> 125 V
Transmission characteristics	Cat. 7_A Class F_A up to 1,000 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +70 °C unmoved
Limiting temperature	-10 ... +50 °C moved
Cable diameter	6.4 mm
Minimum bending radius	5x Cable diameter (repeated bending)
Tensile strength	≤60 N
Test voltage Ur.m.s.	1 kV
Coupling attenuation @ 20 °C / 10 MHz	‌ 5 mΩ/m
Conductor resistance @ 20 °C	≤145 Ω/km
Insulation resistance @ 20 °C	≥ 5,000 MΩ x km
Signal run time @ 20 °C	≤ 4.4 ns/m
Impedance @ 100 MHz	‌100 Ω ±5 %

Material properties

Specifications and approvals

Commercial data

Packaging size	1,000
Net weight	53 g
Net weight	‌ 46 g/m
Country of origin	Germany
European customs tariff number	85444290
GTIN	5713140273757
eCl@ss	27061801 Data and communication cable (copper)
ETIM	EC003249
UNSPSC 24.0	26121609
