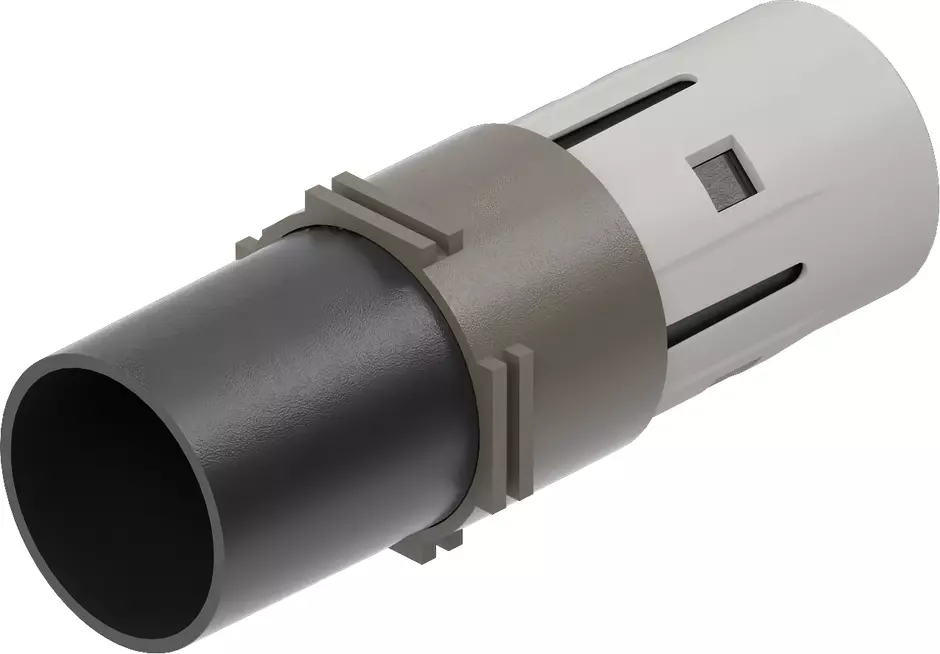

Han 1HC-M-TC800 with retaining ring

Article No.: 97 00 000 0070

New

Image is for illustration purposes only. Please refer to product description.

New

Inserts

Article No.: 97 00 000 0070

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Male

Polyamide (PA), Polycarbonate (PC)

Black

Rated current: ‌800 A

Conductor cross-section: 95 ... 185 mm²

Identification

Version

Termination method	Crimp termination
Gender	Male
Details	Please ensure to hold up the contact with a wrench size 24 to apply the tightening torque
Details	Please order crimp contacts separately.
Details	The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.

Technical characteristics

Material properties

Material (insert)	Polyamide (PA)
Material (insert)	Polycarbonate (PC)
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	EN 45545-2 Fire protection on railway vehicles

Commercial data

Packaging size	1
Net weight	105.35 g
Country of origin	China
European customs tariff number	85389099
eCl@ss	27440205 Contact insert for industrial connectors
UNSPSC 24.0	39121522
