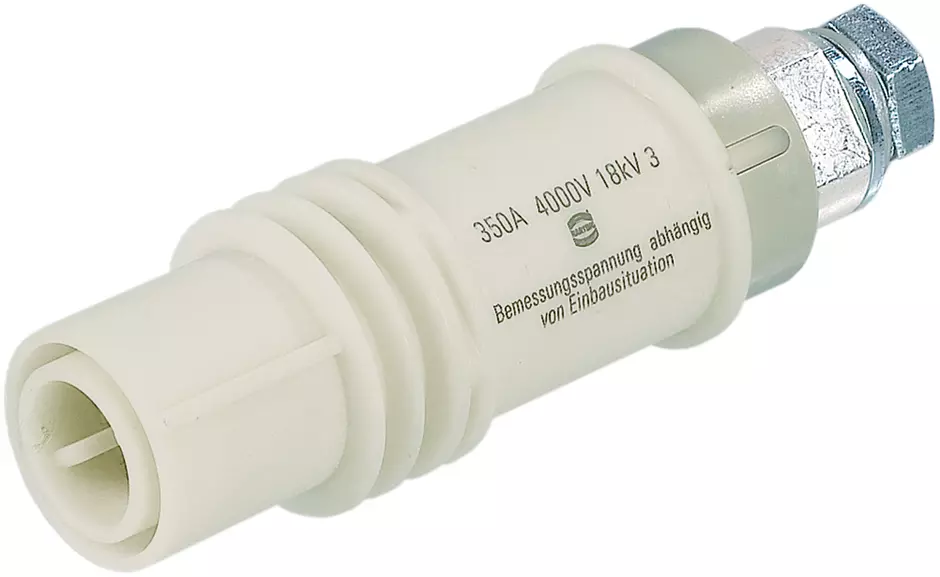

Han 1HC-bu-s-M10 350A

Article No.: 09 11 001 2755

Image is for illustration purposes only. Please refer to product description.

Inserts

Article No.: 09 11 001 2755

to see prices and availability.

to see prices and availability.

Inserts

Screw termination

Female

Polycarbonate (PC), Polyamide (PA)

RAL 7032 (pebble grey)

Rated current: ‌350 A

Conductor cross-section: 120 mm²

Copper alloy

Silver plated

Identification

Version

Termination method	Screw termination
Gender	Female
Details	Please ensure to hold up the contact with a wrench size 17 to apply the tightening torque

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Material (insert)	Polyamide (PA)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
REACH SVHC substances	Lead
ECHA SCIP number	1e38d35d-d1be-4585-8e03-95faccd739bf
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	230 g
Country of origin	Romania
European customs tariff number	85359000
GTIN	5713140016071
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
