Han ID Modul socket CAN

Article No.: 09 80 115 0200

Configurable

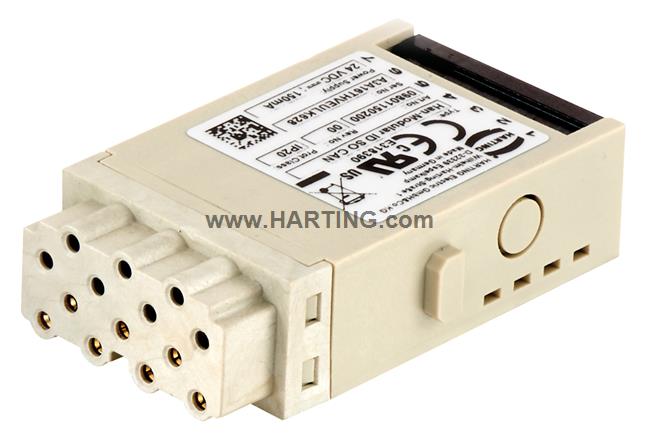

Image is for illustration purposes only. Please refer to product description.

Configurable

ID CAN

Article No.: 09 80 115 0200

to see prices and availability.

to see prices and availability.

ID CAN

Single module

Network module

Cage-clamp termination

Female

Contacts: 7

Polycarbonate (PC)

RAL 7032 (pebble grey)

Copper alloy

Gold plated

Identification

Version

Termination data

Nominal voltage	24 V DC
Power consumption	<5 W

Technical characteristics

Operating temperature	-40 ... +70 °C
Storage temperature	-40 ... +70 °C
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP30

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Gold plated
Material flammability class acc. to UL 94	V-0
Length	53 mm
Width	30.4 mm
Height	14.7 mm
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Specifications	IEC 60721-3-3
	EN 61000-4-2 Electrostatic discharge (ESD)
	EN 61000-4-3 Electromagnetic field
	EN 61000-4-4 Rapid transients (burst)
	EN 61000-4-5 Surge voltages
	EN 61000-4-6 conducted disturbances

Commercial data

Packaging size	1
Net weight	37 g
Country of origin	Germany
European customs tariff number	84715000
GTIN	5713140185050
eCl@ss	27440218 Module for industrial connectors (data)
ETIM	EC000438
UNSPSC 24.0	39121552
