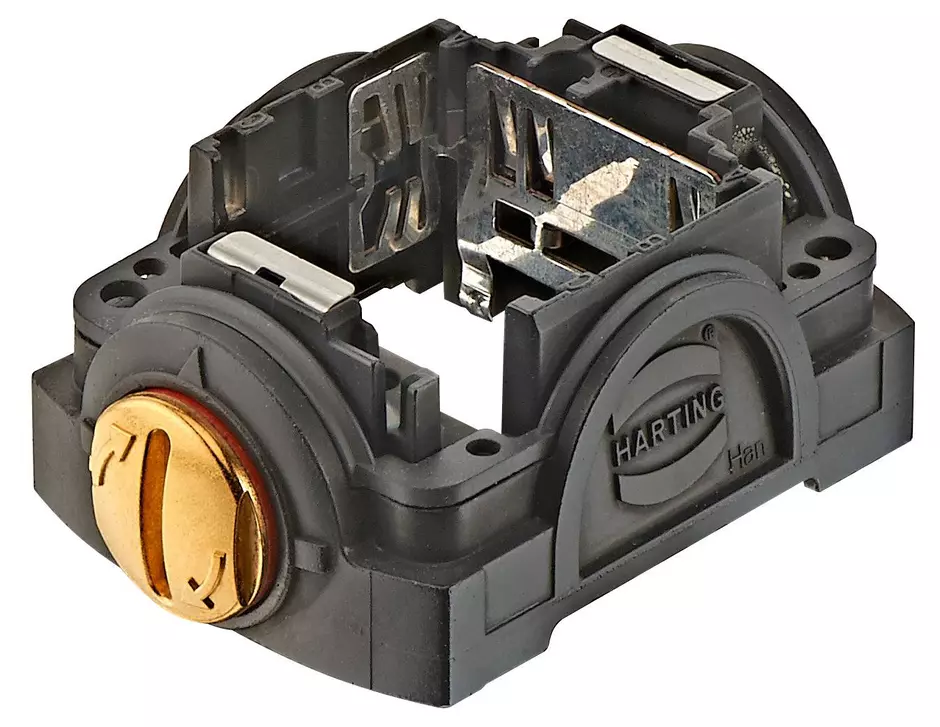

Han-Yellock 30M carrier hood button slot

Article No.: 11 13 300 0110

Image is for illustration purposes only. Please refer to product description.

Carrier hood

Article No.: 11 13 300 0110

to see prices and availability.

to see prices and availability.

Carrier hood

Push button, slot

Size: Han-Yellock® 30

Push button

Polyamide (PA), Stainless steel

Material (hood/housing): Zinc die-cast

Passivated

RAL 9005 (jet black)

Material (seal): NBR

Identification

Version

Locking type	Push button
Size	Han-Yellock^® 30
Field of application	Hoods/housings for outdoor applications

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Un-/locking temperature	-10 ... +85 °C
Mating cycles	500
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Passivated
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR
Material (locking)	Polyamide (PA)
Material (locking)	Stainless steel
Colour (locking)	Melon yellow

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	211.42 g
Country of origin	Romania
GTIN	5713140110472
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
