Han-Yellock 60 HSM 2xM32

Article No.: 11 12 600 1206

Image is for illustration purposes only. Please refer to product description.

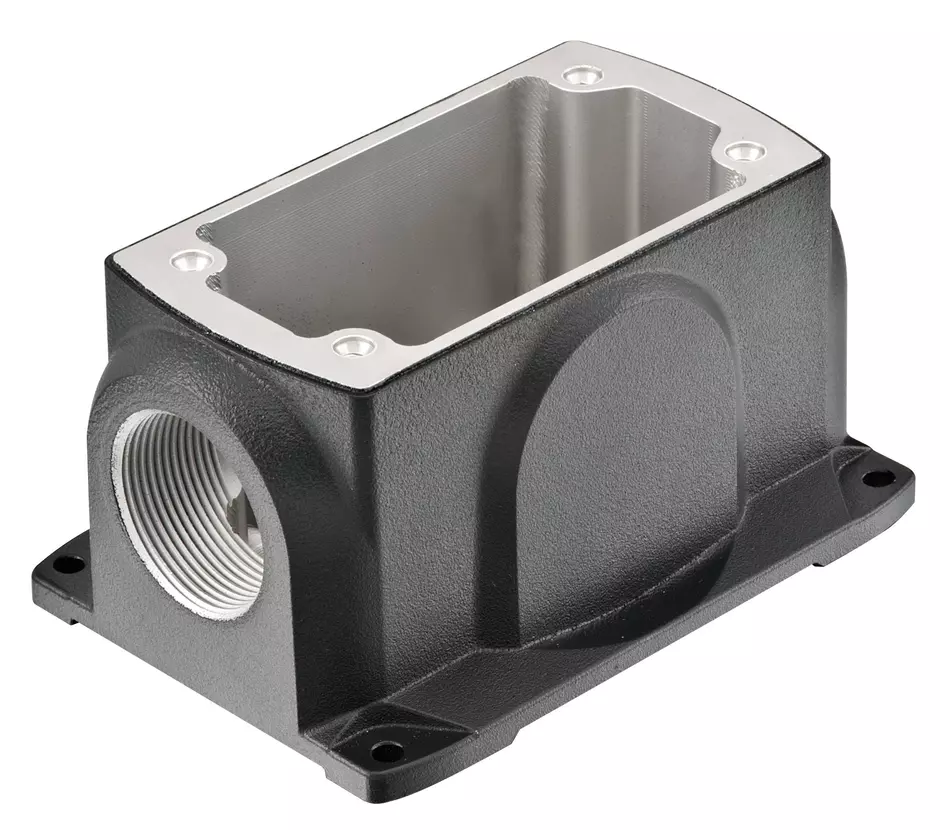

Surface mounted housing

Article No.: 11 12 600 1206

to see prices and availability.

to see prices and availability.

Surface mounted housing

Size: Han-Yellock® 60

Screw locking

Side entry

2x M32

Material (hood/housing): Zinc die-cast

Powder-coated

RAL 7021 (black grey)

Material (seal): NBR

Identification

Version

Size	Han-Yellock^® 60
Version	Side entry
Number of cable entries	2
Cable entry	2x M32
Locking type	Screw locking
Field of application	Hoods/housings for industrial applications

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Un-/locking temperature	-10 ... +85 °C
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 7021 (black grey)
Material (seal)	NBR
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	580 g
Country of origin	China
European customs tariff number	85389099
GTIN	5713140110250
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
