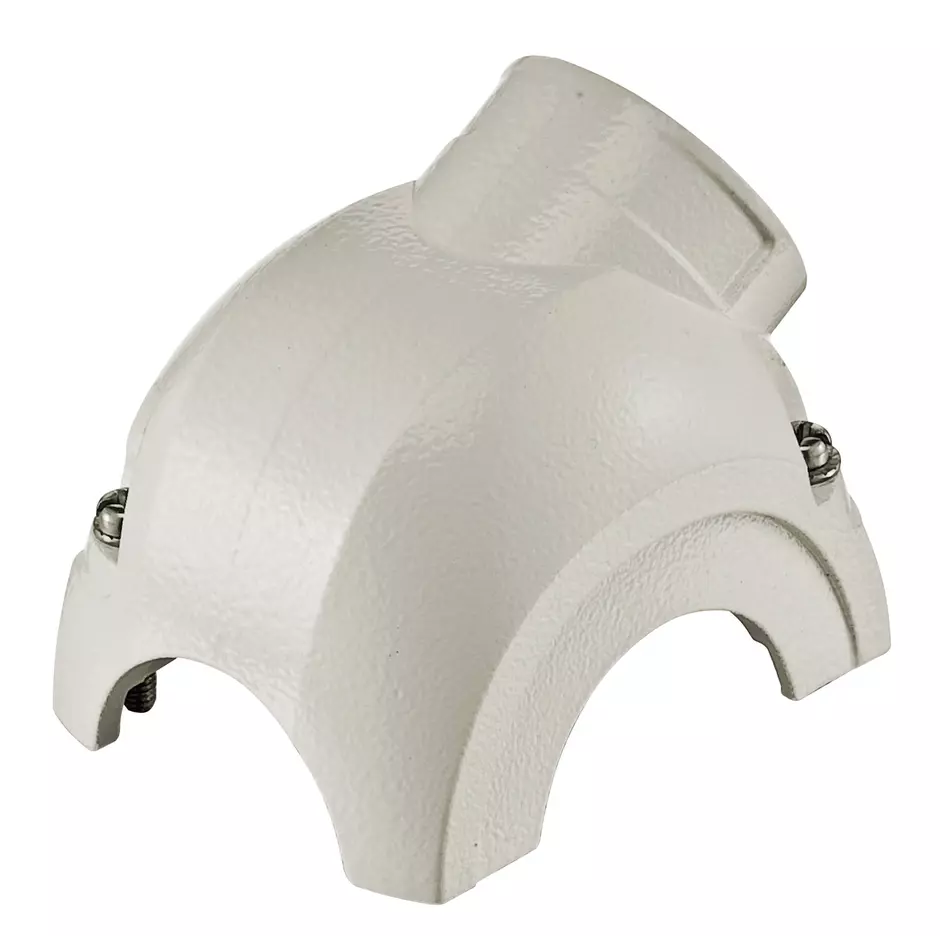

Han-Yellock side entry M20 white

Article No.: 11 12 300 1510

Image is for illustration purposes only. Please refer to product description.

Shell

Article No.: 11 12 300 1510

to see prices and availability.

to see prices and availability.

Shell

White

Size: Han-Yellock® 30

Push button

Polyamide (PA), Stainless steel

Side entry

1x M20

Material (hood/housing): Aluminium die-cast

Powder-coated

RAL 1013 (white)

Identification

Version

Size	Han-Yellock^® 30
Version	Side entry
Number of cable entries	1
Cable entry	1x M20
Locking type	Push button
Field of application	Hoods/housings for industrial applications

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Un-/locking temperature	-10 ... +85 °C
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 1013 (white)
Material (locking)	Polyamide (PA)
Material (locking)	Stainless steel
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
California Proposition 65 substances	Naphthalene

Specifications and approvals

Commercial data

Packaging size	1
Net weight	119 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140110069
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
