ICC20_H_WMRF_BL

Article No.: 19 59 120 3010

New

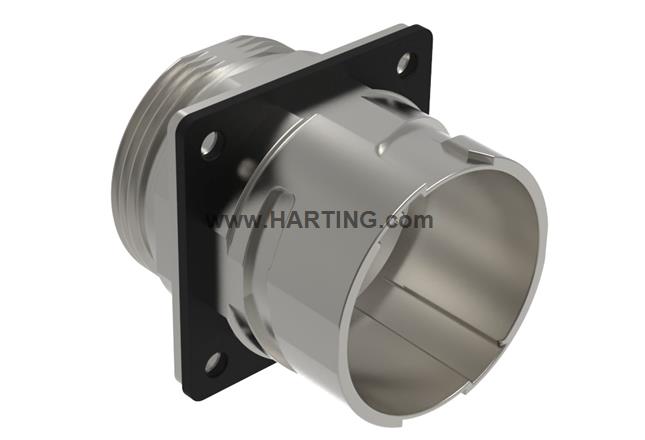

Image is for illustration purposes only. Please refer to product description.

New

Bulkhead mounted housing

Article No.: 19 59 120 3010

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

Straight, Front mounting / Rear mounting

Size: 20

Bayonet locking

Material (hood/housing): Zinc die-cast

Nickel plated

Material (seal): EPDM

Degree of protection: IP67, IPX9

Identification

Category	Connectors
Series	HARTING ICC
Type of hood/housing	Bulkhead mounted housing
Description of hood/housing	Straight
Description of hood/housing	Front mounting / Rear mounting

Version

Size	20
Locking type	Bayonet locking
Details	Please order backshell or fixing nut separately.

Technical characteristics

Tightening torque	‌0.5 Nm Fixing screws M3
Limiting temperature	-40 ... +125 °C
Number of relockings	≥ 500
Degree of protection acc. to IEC 60529	IP67
Degree of protection acc. to IEC 60529	IPX9

Material properties

Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated
Material (seal)	EPDM
Colour (seal)	Black
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	no requirements (flammable mass < 10g)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	51.8 g
Country of origin	India
European customs tariff number	85389099
GTIN	5713140491137
eCl@ss	27440224 Shell for circular connectors
UNSPSC 24.0	39121405
