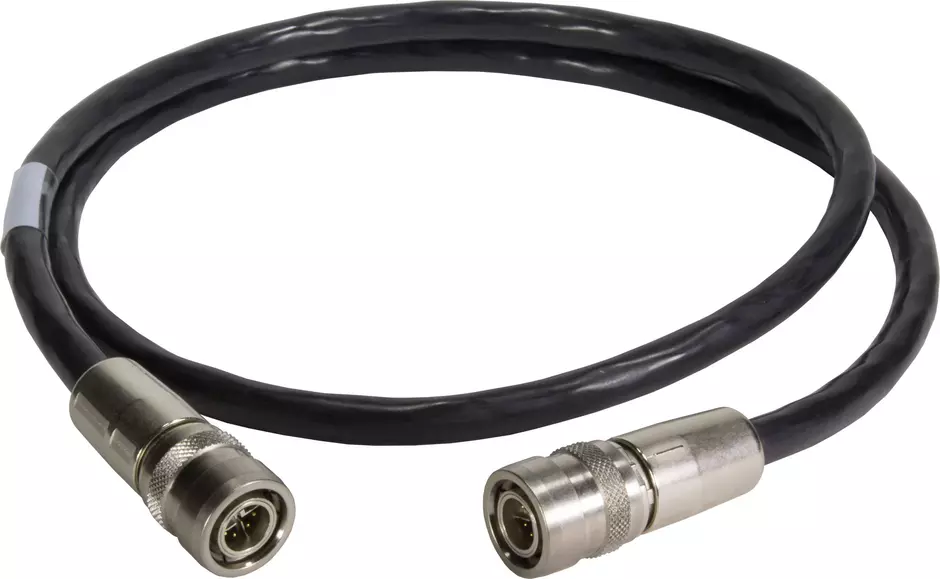

M12 X-coded Cable Assembly-1m

Article No.: 21 33 292 9853 010

Image is for illustration purposes only. Please refer to product description.

Cable assemblies

Article No.: 21 33 292 9853 010

to see prices and availability.

to see prices and availability.

Cable assemblies

Pre-assembled on both sides

Copper cable (round)

for railway applications

Cable length: 1 m

Parts list specification

Type of cable	Ha-Vis EtherRail 4x2xAWG24/7 CAT7 Show details
Connector 1	M12 X 8pole male straight PP P&G Show details
Connector 2	M12 X 8pole male straight PP P&G Show details

Identification

Version

Technical characteristics

Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +80 °C

Material properties

Material (cable)	PE
Colour (cable)	Black
RoHS	compliant with exemption
RoHS exemptions	6(a) / 6(a)-I: Lead as an alloying element in steel for machining purposes and in galvanised steel containing up to 0,35 % lead by weight / Lead as an alloying element in steel for machining purposes containing up to 0,35 % lead by weight and in batch hot dip galvanised steel components containing up to 0,2 % lead by weight
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Commercial data

Packaging size	10
Net weight	170.75 g
Country of origin	Romania
European customs tariff number	85444290
GTIN	5713140248298
eCl@ss	27060390 Ready-made data cable (unspecified)
ETIM	EC002599
UNSPSC 24.0	26121600
