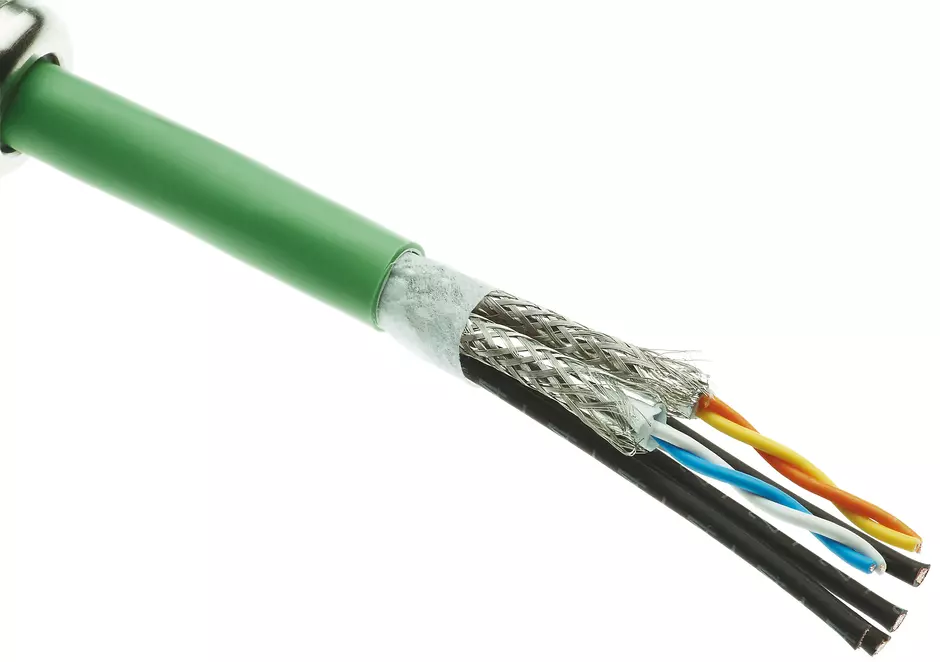

PN Type B Hybrid 4xAWG22/7 + 4x1.5, 100m

Article No.: 09 45 600 0300

Image is for illustration purposes only. Please refer to product description.

Hybrid cable (copper / copper)

Article No.: 09 45 600 0300

to see prices and availability.

to see prices and availability.

Hybrid cable (copper / copper)

Flame retardant

4x AWG 22/7, 4x 1.5 mm²

FRNC (LSZH)

Cable length: 100 m

Cat. 5 Class D up to 100 MHz

Identification

Version

Technical characteristics

Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Limiting temperature	-20 ... +70 °C
Coupling attenuation @ 20 °C / 10 MHz	≤ 10 mΩ/m
Conductor resistance @ 20 °C	≤120 Ω/km
Insulation resistance @ 20 °C	≥ 500 MΩ x km
Signal run time @ 20 °C	≤ 5.3 ns/m
Impedance @ 100 MHz	‌100 Ω ±15 %

Material properties

Material (cable)	FRNC (LSZH)
Colour (cable)	Green
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes

Specifications and approvals

Commercial data

Packaging size	1
Net weight	15,000 g
Country of origin	Germany
European customs tariff number	85444290
GTIN	5713140061989
eCl@ss	27060501 Hybrid cable
ETIM	EC001579
UNSPSC 24.0	26121639
