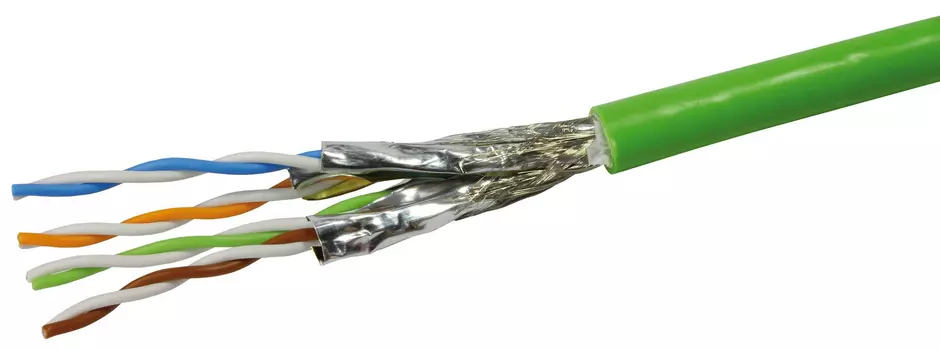

PROFINET TypB Cat6A 4x2xAWG23/7 PVC 100m

Article No.: 09 45 600 1231

Image is for illustration purposes only. Please refer to product description.

Copper cable (round)

Article No.: 09 45 600 1231

to see prices and availability.

to see prices and availability.

Copper cable (round)

Flame retardant, UV resistant

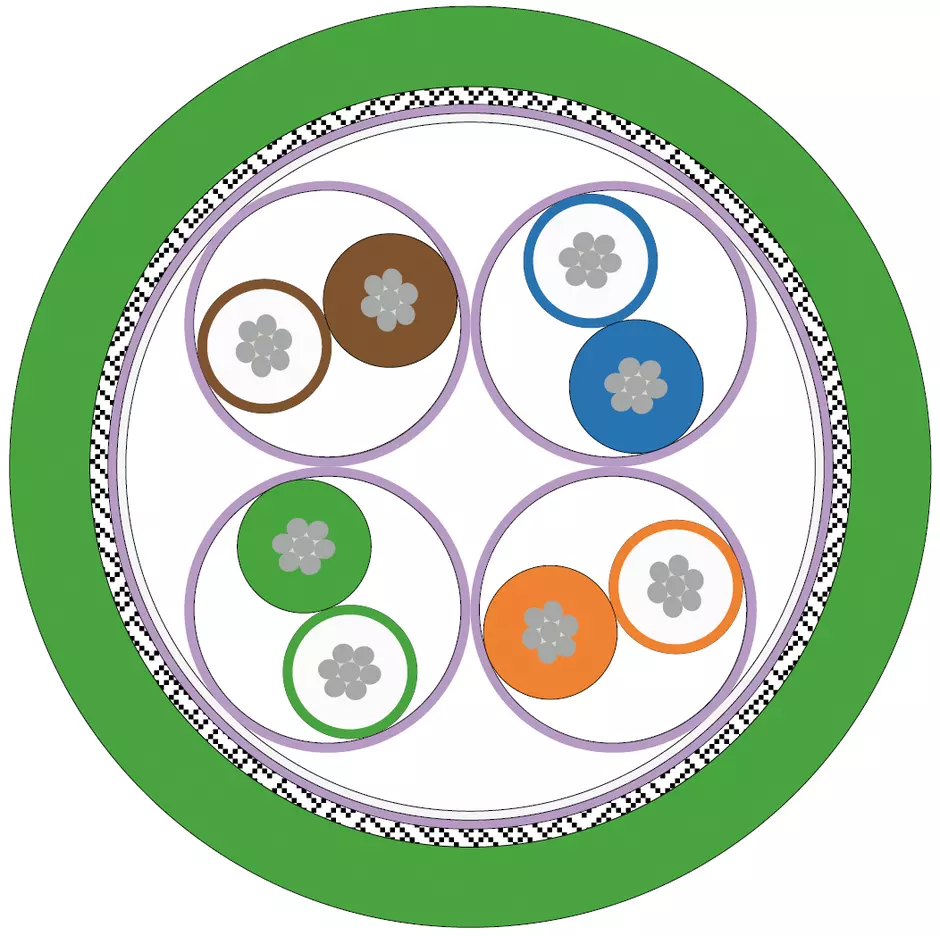

4x 2x AWG 23/7

PVC

Cable length: 100 m

Cat. 6A Class EA up to 500 MHz

Identification

Category	System cabling
Element	Bulk cables
Specification	Not assembled
Type of cable	Copper cable (round)
Description of the cable	Flame retardant
Description of the cable	UV resistant
Printing on cable	HARTING INDUSTRIAL ETHERNET STANDARD CABLE CAT6A x 4x2xAWG23/7 (SHIELED) „RU“ AWM Style 21695 094560001080200 „sequential length in metres“ x „year/internal order number“

Version

Technical characteristics

Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +80 °C unmoved
Limiting temperature	-40 ... +80 °C moved
Cable diameter	8.7 mm
Minimum bending radius	8x Cable diameter (repeated bending)
Minimum bending radius	4x Cable diameter (singular bending)
Conductor resistance @ 20 °C	≤75 Ω/km
Insulation resistance @ 20 °C	≥ 500 MΩ x km
Signal run time @ 20 °C	≤ 5.13 ns/m
Impedance @ 100 MHz	‌100 Ω ±5 %

Material properties

Specifications and approvals

Specifications	UN/ECE-R 118 fire protection for rolling stock
	UL style 21695
	IEC 60332-1-2 Flame retardancy
Standards	PROFINET
PROFINET	Yes

Commercial data

Packaging size	1
Net weight	9,330 g
Net weight	‌ 81 g/m
Country of origin	Germany
European customs tariff number	85444290
GTIN	5713140062290
eCl@ss	27061801 Data and communication cable (copper)
ETIM	EC003249
UNSPSC 24.0	26121609
