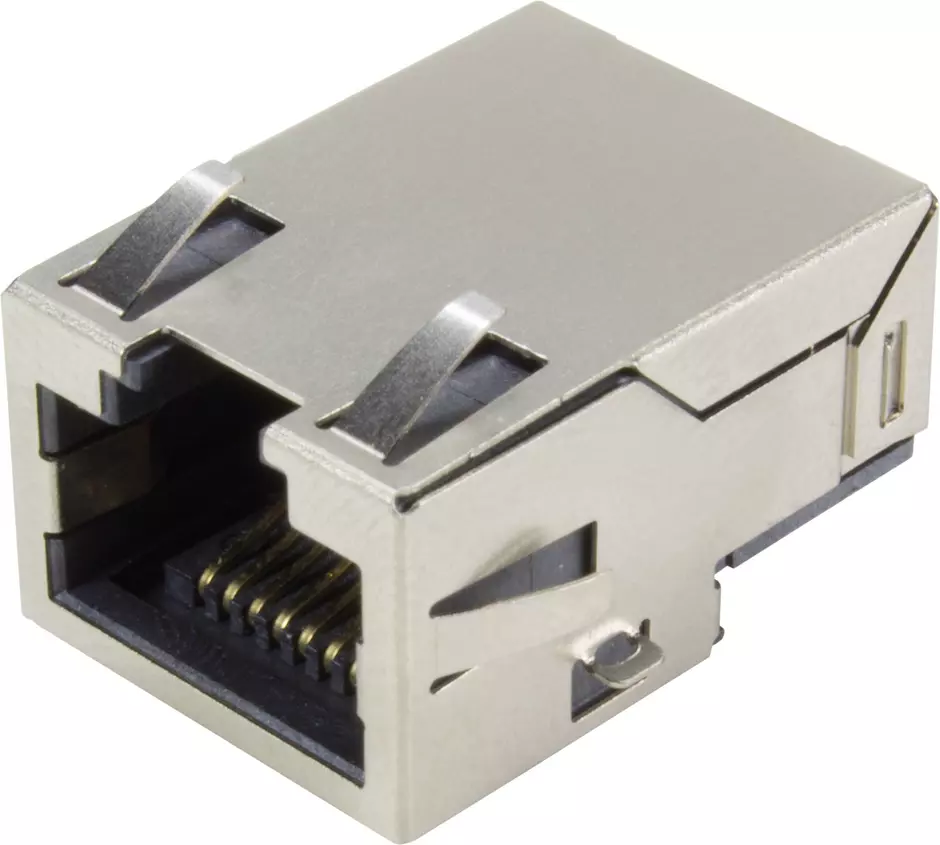

RJI RJ45 jack 10/100 Mbit CE PoE

Article No.: 09 45 551 1166

Image is for illustration purposes only. Please refer to product description.

Female

Article No.: 09 45 551 1166

to see prices and availability.

to see prices and availability.

Female

RJ45, with integrated transformer, With contact spring, Angled

Reflow soldering termination (THR)

Contacts: 8

Identification

Category	Connectors
Series	HARTING RJ Industrial^®
Identification	Magnetics
Element	Female
Specification	RJ45
	with integrated transformer
	With contact spring
	Angled

Version

Termination method	Reflow soldering termination (THR)
Shielding	Fully shielded, 360° shielding contact
Number of contacts	8
Pack contents	Tape & reel

Technical characteristics

Rated voltage	60 V DC
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP20

Material properties

RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	110
Net weight	7.1 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140224490
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
