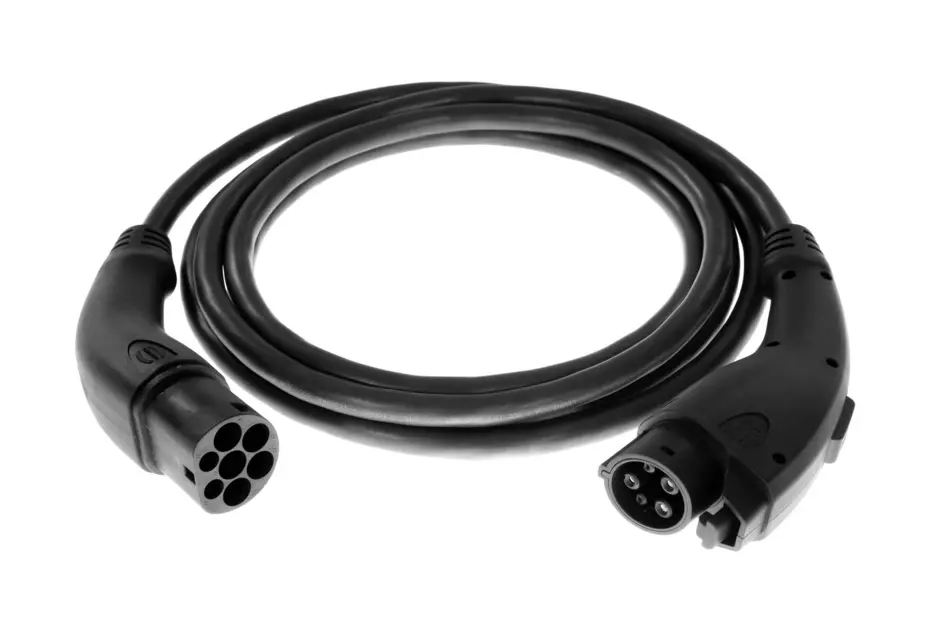

C. Cable Mode3Typ1/2 32A 3xAWG10 VDE 5m

Article No.: 08 91 409 0202 A0

Image is for illustration purposes only. Please refer to product description.

Mode 3

Article No.: 08 91 409 0202 A0

to see prices and availability.

to see prices and availability.

Mode 3

Charging cable

Straight cable

Type 1, Female (Vehicle side)

Type 2, Male (infrastructure side)

Cable length: 5 m

Identification

Version

Cable length	5 m
Core structure	3x 6 mm² + 0.5 mm²
Termination method	Crimp termination
Termination method	not seperable
Number of phases	1
Number of contacts	5
Number of signal contacts	2
Number of power contacts	3
Contact configuration	Signal: CP, PP
Contact configuration	Power: L1, N, PE
Details	Also available with customer specific logo on request.

Technical characteristics

Rated current (signal)	2 A
Rated voltage (signal)	30 V
Rated current (power)	32 A
Rated voltage (power)	250 V
Type of current	AC
Charging power	‌ 7.2 kW
Coding resistance	‌220 Ω between PE and PP
Ambient temperature	-30 ... +50 °C in operation
Ambient temperature	-40 ... +80 °C storage/transport
Air pressure	≥540 hPa ≈ 5000 m
Insertion force	< 100 N
Withdrawal force	< 100 N
Mating cycles	≥ 10,000
Degree of protection acc. to IEC 60529	IP44 mated condition
Cable diameter	12.8 mm ± 0.4 mm
Minimum bending radius	9x Cable diameter (repeated bending)
Conductor resistance @ 20 °C	≤3.3 Ω/km @ 6 mm²
Conductor resistance @ 20 °C	≤39 Ω/km @ 0.5 mm²

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	Black
Material (cover)	Thermoplastic polyurethane (TPU)
Material (cable)	Thermoplastic polyurethane (TPU)
Colour (cable)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	1
Net weight	3.113 kg
Country of origin	Romania
European customs tariff number	85444290
GTIN	5713140277458
eCl@ss	27144705 Charging cable E-Mobility
ETIM	EC002897
UNSPSC 24.0	25175004
