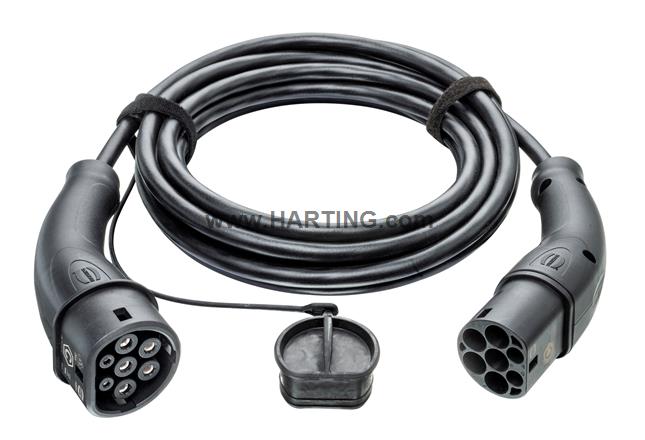

Charg.c.Mode3 22KW Type2 G2 32A 3ph 10m

Article No.: 08 91 409 0112 B0

New

Image is for illustration purposes only. Please refer to product description.

New

Mode 3

Article No.: 08 91 409 0112 B0

to see prices and availability.

to see prices and availability.

Mode 3

Charging cable

Straight cable

Type 2, Female (Vehicle side)

Type 2, Male (infrastructure side)

Cable length: 10 m

Identification

Version

Cable length	10 m
Core structure	5x 4 mm² + 0.5 mm²
Termination method	Crimp termination
Termination method	not seperable
Number of phases	3
Number of contacts	7
Number of signal contacts	2
Number of power contacts	5
Contact configuration	Signal: CP, PP
Contact configuration	Power: L1, L2, L3, N, PE
Details	Also available with customer specific logo on request.

Technical characteristics

Rated current (signal)	2 A
Rated voltage (signal)	30 V
Rated current (power)	32 A
Rated voltage (power)	480 V
Type of current	AC
Charging power	‌ 22 kW
Coding resistance	‌220 Ω between PE and PP
Ambient temperature	-30 ... +50 °C in operation
Ambient temperature	-40 ... +80 °C storage/transport
Air pressure	≥540 hPa ≈ 5000 m
Insertion force	< 100 N
Withdrawal force	< 100 N
Mating cycles	≥ 10,000
Degree of protection acc. to IEC 60529	IP44 mated condition
Cable diameter	14.55 mm ± 0.35 mm
Minimum bending radius	9x Cable diameter (repeated bending)
Conductor resistance @ 20 °C	≤4.14 Ω/km @ 4 mm²
Conductor resistance @ 20 °C	≤39 Ω/km @ 0.5 mm²

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	Black
Material (cover)	Thermoplastic polyurethane (TPU)
Material (cable)	Thermoplastic polyurethane (TPU)
Colour (cable)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	1
Net weight	4,115 g
Country of origin	Romania
European customs tariff number	85444290
GTIN	5713141063562
eCl@ss	27144705 Charging cable E-Mobility
ETIM	EC002897
UNSPSC 24.0	25175004
