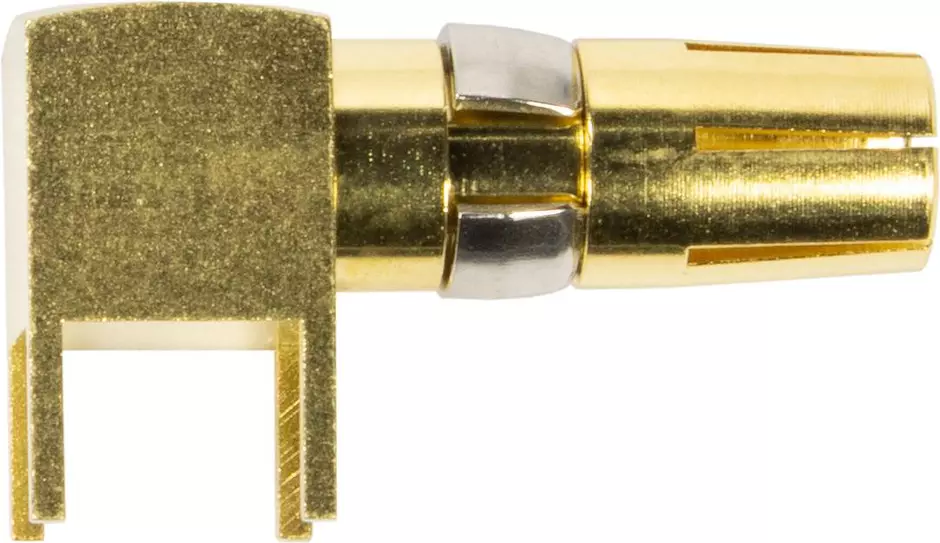

DIN Signal female contact 40A angled

Article No.: 09 03 000 6207

Image is for illustration purposes only. Please refer to product description.

PCB solder contact

Article No.: 09 03 000 6207

to see prices and availability.

to see prices and availability.

PCB solder contact

Angled

Rated current: ≤40 A

Female contact for female connectors

Copper alloy

Noble metal over Ni Mating side, Noble metal over Ni Termination side

Identification

Version

Termination method	Solder termination
Gender	Female contact for female connectors
Connection type	Motherboard to daughtercard
	Mezzanine
	Extender card
	PCB to cable
Manufacturing process	Turned contacts

Technical characteristics

Material properties

ECHA SCIP number	ecef7555-f643-4ceb-a337-fc54762297f1
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Noble metal over Ni Termination side

Specifications and approvals

Specifications	DIN 41626

Commercial data

European customs tariff number	85366990
Packaging size	20
Net weight	3.304 g
Country of origin	Germany
GTIN	5713140004061
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
