DIN Signal type B male solder NFF

Article No.: 09 02 164 6921 222

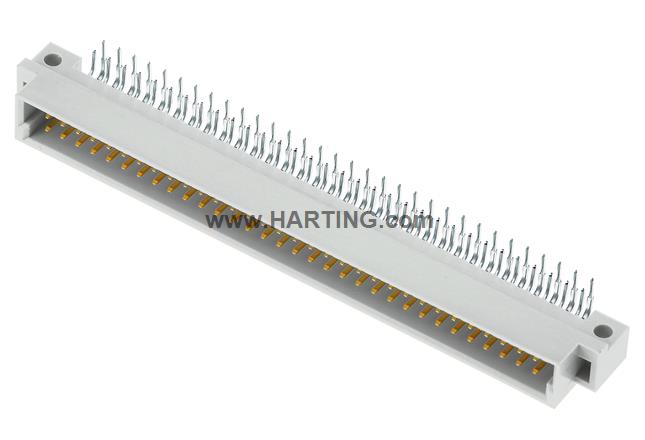

Image is for illustration purposes only. Please refer to product description.

Male connector

Article No.: 09 02 164 6921 222

to see prices and availability.

to see prices and availability.

Male connector

Wave soldering termination

Rated current: ‌2 A

Contacts: 64

Angled

Copper alloy

Au over NiP over Ni Mating side, Sn over Ni Termination side

Performance level: 2, acc. to IEC 60603-2

Coding: Coding with loss of contacts, Side coding

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7035 (light grey)

Identification

Version

Termination method	Wave soldering termination
Connection type	Motherboard to daughtercard
	Extender card
	PCB to cable
Number of contacts	64
Contact configuration	Rows a and b, positions 1, 2, ... , 31, 32
Coding	Coding with loss of contacts
Coding	Side coding
PCB fixing	With fixing flange

Technical characteristics

Contact rows	2
Contact spacing (termination side)	2.54 mm
Contact spacing (mating side)	2.54 mm
Rated current	‌ 2 A
Rated current	Rated current measured at 20 °C, see derating curve for details
Clearance distance	≥ 1.2 mm
Creepage distance	≥ 1.2 mm
Insulation resistance	>10¹¹ Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 60 N
Withdrawal force	≤ 40 N
Performance level	2
Performance level	acc. to IEC 60603-2
Mating cycles	≥ 400
Test voltage Ur.m.s.	1 kV
Isolation group	II (400 ≤ CTI < 600)
Hot plugging	No

Material properties

Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7035 (light grey)
Material (contacts)	Copper alloy
Surface (contacts)	Au over NiP over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	IEC 60603-2
Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

Packaging size	20
Net weight	11.78 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140003446
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
