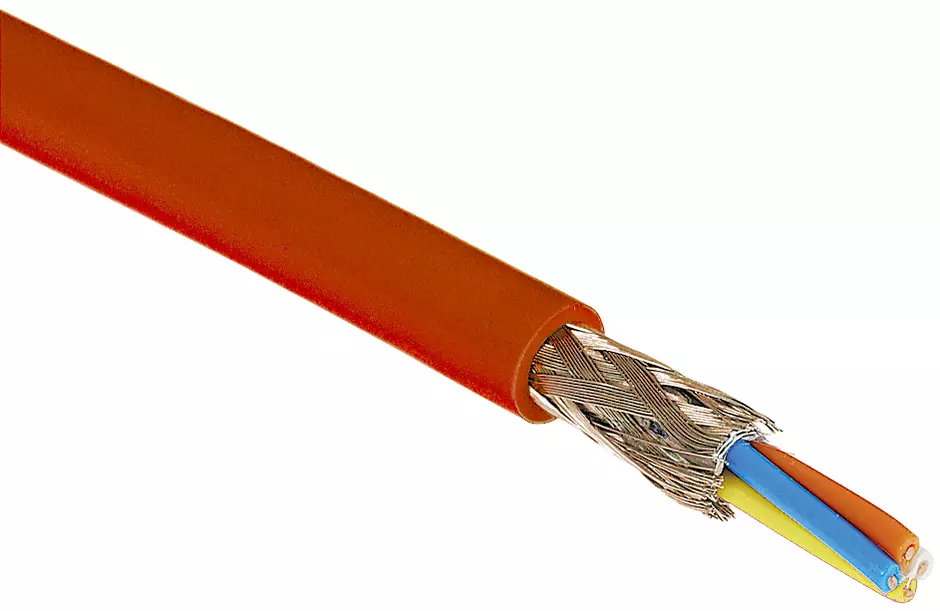

HAR SERCOS III Typ B 4xAWG22/7 PVC 500m

Article No.: 09 45 600 0114

Image is for illustration purposes only. Please refer to product description.

Copper cable (round)

Article No.: 09 45 600 0114

to see prices and availability.

to see prices and availability.

Copper cable (round)

Flame retardant, Sunlight resistant

4x AWG 22/7

PVC

Cable length: 500 m

Cat. 5 Class D up to 100 MHz

Identification

Version

Technical characteristics

Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Limiting temperature	-40 ... +70 °C
	-20 ... +60 °C During laying
	-50 ... +70 °C storage/transport
Minimum bending radius	5x Cable diameter (repeated bending)
Minimum bending radius	3x Cable diameter (singular bending)
Torsional strength	≥ 10.000 @ torsion angle= ±180°/m
Conductor resistance @ 20 °C	≤120 Ω/km

Material properties

Specifications and approvals

Commercial data

Packaging size	1
Net weight	32,800 g
Net weight	‌ 68 g/m
Country of origin	Germany
European customs tariff number	85444290
GTIN	5713140273412
eCl@ss	27061801 Data and communication cable (copper)
ETIM	EC003249
UNSPSC 24.0	26121609
