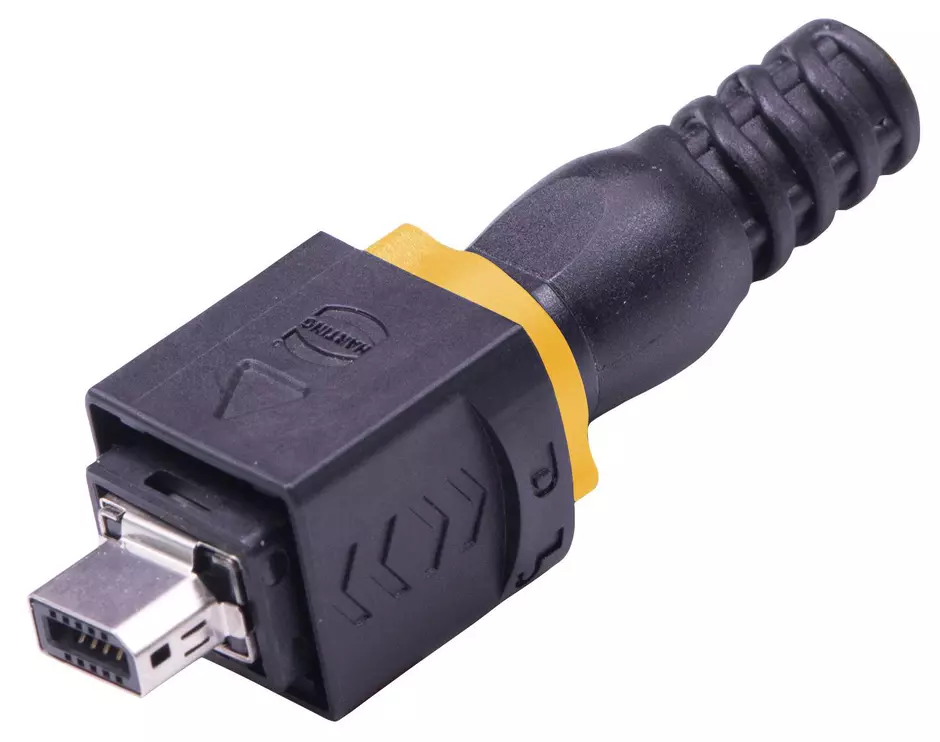

HARTING MPP ix Type A overmolded

Article No.: 33 48 CON 34P1 0

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 33 48 CON 34P1 0

to see prices and availability.

to see prices and availability.

Connectors

Connector Overmoulded

IDC insulation displacement termination

Rated current: ‌1.5 A

Contacts: 8 + 2x GND

Copper alloy

PdNi ≥ 0.64 µm + Au ≥ 0.05 µm over Ni ≥ 2.6 µm Mating side, Sn ≥ 3 µm over Ni ≥ 1.8 µm Termination side

PushPull

Material: Polybutylene terephthalate (PBT) / PA66

Degree of protection: IP65 / IP67

Identification

Category	Connectors
Identification	HARTING ix Industrial®
Element	Connector
Specification	Overmoulded
Series	HARTING Mini PushPull
Features	Suitable for all PoE versions

Version

Termination method	IDC insulation displacement termination
Locking type	PushPull
Shielding	Fully shielded, 360° shielding contact
Number of contacts	8
further contacts	+ 2x GND
Coding	Type A

Technical characteristics

Conductor cross-section (mm²)	0.09 ... 0.14 mm²
Conductor cross-section (AWG)	AWG 28 ... AWG 26
Wire outer diameter	≤1.15 mm
Rated voltage	‌ 50 V AC
Rated voltage	‌ 60 V DC
Rated current	‌ 1.5 A
Rated current	3 A per contact when used with 4 contacts (1,2,6,7)
Insulation resistance	>100 MΩ
Contact resistance	≤ 30 mΩ
Shielding resistance	≤ 100 mΩ
Limiting temperature	-40 ... +70 °C
Storage temperature	-60 ... +85 °C
Relative humidity	95 % Non-condensing (operation)
Relative humidity	95 % Non-condensing (storage/transport)
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65 / IP67
Cable diameter	5.5 ... 7.5 mm
Test voltage Ur.m.s.	0.5 kV
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s

Material properties

Material (insert)	Polyamide (PA)
Material (shielding)	Stainless steel
	Ni ≥ 1.6 µm Mating side (shielding)
	Sn ≥ 0.9 µm over Ni ≥ 0.9 µm Termination side (shielding)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	PdNi ≥ 0.64 µm + Au ≥ 0.05 µm over Ni ≥ 2.6 µm Mating side
Surface (contacts)	Sn ≥ 3 µm over Ni ≥ 1.8 µm Termination side
Material (hood/housing)	Polybutylene terephthalate (PBT) / PA66
Colour (hood/housing)	Black
Material (seal)	HNBR / NBR
Colour (seal)	Black
Material (locking)	Polybutylene terephthalate (PBT)
Colour (locking)	Yellow
Material flammability class acc. to UL 94	V-0
