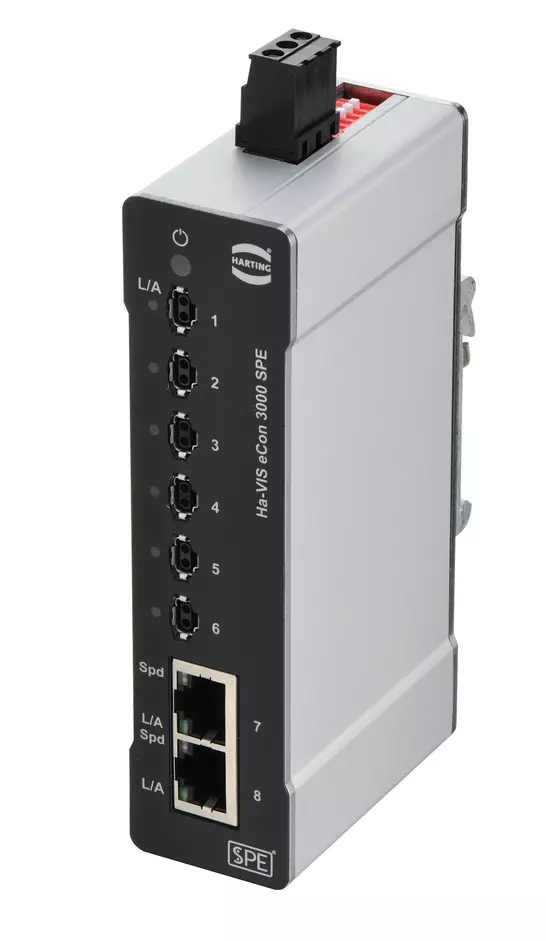

Ha-VIS eCon 3026 GBT-AT1-SPE

Article No.: 24 05 402 6400

New

Image is for illustration purposes only. Please refer to product description.

New

Industrial Ethernet Switches

Article No.: 24 05 402 6400

to see prices and availability.

to see prices and availability.

Industrial Ethernet Switches

Unmanaged

Gigabit Ethernet

Nominal voltage: 24, 48

Total number of ports: 8

10/100/1000 Mbit/s (RJ45-Ports): 2

1000 Mbit/s (RJ45-Ports): 2

Operating temperature: -40 ... +70 °C

Identification

Series	Ha-VIS eCon 3000
Identification	Single Pair Ethernet (SPE)
Element	Industrial Ethernet Switches
Specification	Unmanaged
Type of Ethernet	Gigabit Ethernet

Version

Total number of ports	8
Fixing	35 mm DIN rail acc. to EN 60715
Switching technology	Store and Forward
Frame size	10.24 kB
MAC table size	1k Entries
MAC–address filter	LLDP and PROFINET PTCP Delay (01-80-C0-00-00-0E) blocked
Packet buffer size	1 Megabit
Non blocking	Yes
Quality of service	Yes
Signal contact	No
PoE functionality	No
Jumbo frame support	Yes
Field of application	Indoor usage
Pack contents	Pluggable screw contact for power supply
Pack contents	Assembly instructions

Termination data

Nominal voltage	24 V DC
Nominal voltage	48 V DC
Permissible voltage	16.8 ... 60 V DC
Surge protection	Yes
Operating current	‌145 mA @ 24 V DC
Operating current	‌76 mA @ 48 V DC
Supply circuit	SELV (Circuit Breaker 10 A)
Starting current	<1.3 A @ 24 V DC
Starting current	<2.2 A @ 48 V DC
Overcurrent protection	‌2 A at input
Power consumption	<3.5 W @ 24 V DC
Termination method	Pluggable screw contact
Number of contacts	3
Conductor cross-section	0.08 ... 2.5 mm²
Conductor cross-section [AWG]	AWG 28 ... AWG 12
Pinout	+ / - / FE
Reverse polarity protection	Yes

Technical characteristics

Pollution degree	2
Overvoltage category	II (400 ≤ CTI < 600)
Operating temperature	-40 ... +70 °C
Storage temperature	-40 ... +85 °C
Relative humidity	0 ... 95 % Non-condensing (operation)
Relative humidity	0 ... 95 % Non-condensing (storage/transport)
Air pressure	≥795 hPa ≈ 2000 m
Degree of protection acc. to IEC 60529	IP30 mated condition

Ethernet ports copper

Ethernet ports SPE

Material properties

Material (hood/housing)	Aluminium (anodised)
Material (hood/housing)	Stainless steel
Length	64.5 mm
Width	33 mm
Height	130 mm
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Specifications	EN 55032 emission standard
	EN 55035 EMC Interference immunity
	EN 61000-4-2 Electrostatic discharge (ESD)
	EN 61000-4-3 Electromagnetic field
	EN 61000-4-4 Rapid transients (burst)
	EN 61000-4-5 Surge voltages
	EN 61000-4-6 conducted disturbances
	EN 61000-6-4 emission standard
	IEC 60068-2-6 Vibration (sinusoidal)
Approvals	CE
Approvals	on request
PROFINET	Yes
FCC	Yes

Commercial data

Packaging size	1
Net weight	348 g
Country of origin	Germany
European customs tariff number	85176200
GTIN	5713140195226
eCl@ss	19170130 Network switch (general application)
ETIM	EC000734
UNSPSC 24.0	43222612
