Ha-VIS eCon 3041GBT-AF

Article No.: 24 03 404 1200

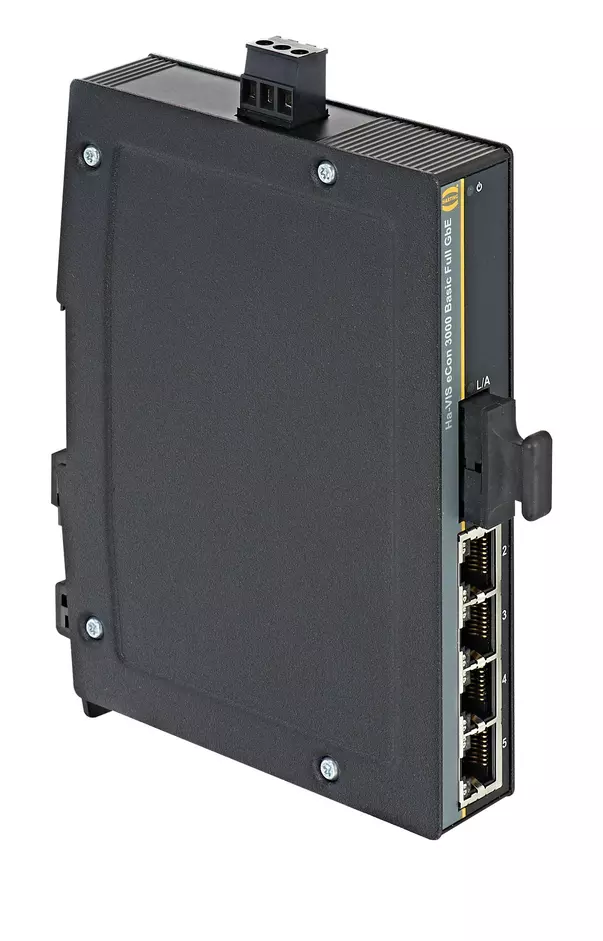

Image is for illustration purposes only. Please refer to product description.

Industrial Ethernet Switches

Article No.: 24 03 404 1200

to see prices and availability.

to see prices and availability.

Industrial Ethernet Switches

Unmanaged

Full Gigabit Ethernet

Nominal voltage: 24, 48

Total number of ports: 5

10/100/1000 Mbit/s (RJ45-Ports): 4

1000 Mbit/s (SC-Ports, LX): 1

Operating temperature: -40 ... +70 °C

Identification

Series	Ha-VIS eCon 3000
Element	Industrial Ethernet Switches
Specification	Unmanaged
Type of Ethernet	Full Gigabit Ethernet

Version

Total number of ports	5
Fixing	35 mm DIN rail acc. to EN 60715
Switching technology	Store and Forward
Frame size	10 kB
MAC table size	8k Entries
Packet buffer size	1 Megabit
Non blocking	Yes
Quality of service	Yes
Energie Efficient Ethernet	Yes
Flow control	Off
Signal contact	No
PoE functionality	No
Jumbo frame support	Yes
Pack contents	Pluggable screw contact for power supply
Pack contents	Assembly instructions

Termination data

Nominal voltage	24 V DC
Nominal voltage	48 V DC
Permissible voltage	9 ... 60 V DC
Surge protection	Yes
Operating current	<155 mA @ 24 V DC
Operating current	<81 mA @ 48 V DC
Supply circuit	SELV (Circuit Breaker 10 A)
Starting current	<1.6 A @ 24 V DC
Starting current	<3.2 A @ 48 V DC
Overcurrent protection	‌12 A at input
Power consumption	<3.72 W @ 24 V DC
Termination method	Pluggable screw contact
Number of contacts	3
Conductor cross-section	0.08 ... 2.5 mm²
Conductor cross-section [AWG]	AWG 28 ... AWG 12
Pinout	+ / - / FE
Reverse polarity protection	Yes

Technical characteristics

Operating temperature	-40 ... +70 °C
Storage temperature	-40 ... +85 °C
Relative humidity	0 ... 95 % Non-condensing (operation)
Relative humidity	0 ... 95 % Non-condensing (storage/transport)
Air pressure	≥795 hPa ≈ 2000 m
Degree of protection acc. to IEC 60529	IP30 mated condition
MTBF	≈ 2150,000 h

Ethernet ports copper

Ethernet ports fibre

Material properties

Material (hood/housing)	Aluminium (anodised)
Material (hood/housing)	Steel sheet (powder-coated)
Length	107.5 mm
Width	25 mm
Height	142 mm
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	EN 55022 Radio disturbance characteristics
	EN 61000-4-2 Electrostatic discharge (ESD)
	EN 61000-4-3 Electromagnetic field
	EN 61000-4-4 Rapid transients (burst)
	EN 61000-4-5 Surge voltages
	EN 61000-4-6 conducted disturbances
	EN 61000-6-4 emission standard
	IEC 60068-2-6 Vibration (sinusoidal)
	IEEE 802.3
UL / CSA	UL 508 NRAQ.E253944
UL / CSA	CSA-C22.2 No. 142 NRAQ7.E253944
Approvals	CE
Approvals	DNV GL
FCC	Yes

Commercial data

Packaging size	1
Net weight	474 g
Country of origin	Germany
European customs tariff number	85176200
GTIN	5713140148338
eCl@ss	19170130 Network switch (general application)
ETIM	EC000734
UNSPSC 24.0	43222612
