Ha-VIS eCon 4080BT-BT
Article No.: 20 77 308 1000

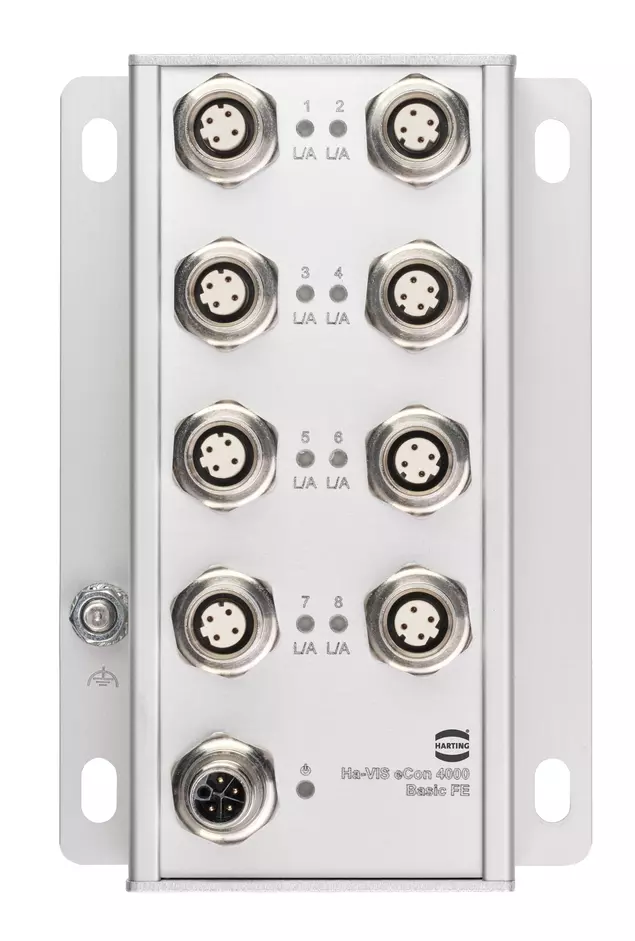

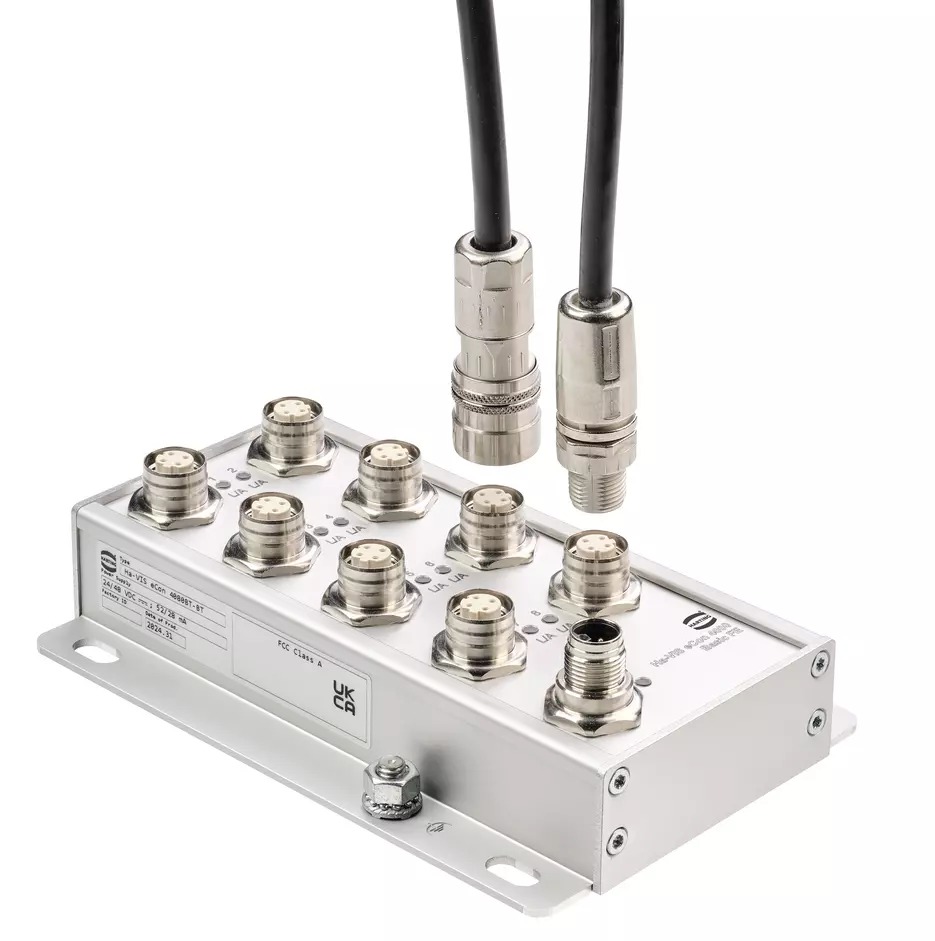

Image is for illustration purposes only. Please refer to product description.
Ha-VIS eCon 4080BT-BT
Article No.: 20 77 308 1000
Properties overview
Product details
| Series | Ha-VIS eCon 4000 |
|---|---|
| Element | Industrial Ethernet Switches |
| Specification | Unmanaged |
| Type of Ethernet | Fast Ethernet |
| Total number of ports | 8 |
|---|---|
| Fixing | Wall mounting |
| Switching technology | Store and Forward |
| Frame size | 2.048 kB |
| MAC table size | 2k Entries |
| Packet buffer size | 0.77 Megabit |
| Non blocking | Yes |
| Quality of service | Yes |
| Energie Efficient Ethernet | Yes |
| Flow control | Off |
| Signal contact | No |
| PoE functionality | No |
| Conformal coating of PCB | Yes |
| Pack contents | Assembly instructions |
| Nominal voltage | 24 V DC |
|---|---|
| 48 V DC | |
| Permissible voltage | 12 ... 60 V DC |
| Surge protection | Yes |
| Operating current | 52 mA @ 24 V DC |
| 28 mA @ 48 V DC | |
| Supply circuit | SELV (Circuit Breaker 10 A) |
| Starting current | 14 A @ 24 V DC |
| 2.9 A @ 48 V DC | |
| Overcurrent protection | 2 A at input |
| Power consumption | ≤1.3 W @ 24 V DC |
| Termination method | M12 L-coding |
| Number of contacts | 4 |
| Conductor cross-section | 0.5 ... 2.5 mm² |
| Conductor cross-section [AWG] | AWG 20 ... AWG 14 |
| Pinout | + / - / - / + |
| Reverse polarity protection | Yes |
| Overvoltage category | II (protection through double or reinforced insulation) |
|---|---|
| Operating temperature | -40 ... +70 °C |
| Storage temperature | -40 ... +85 °C |
| Relative humidity | 10 ... 95 % Non-condensing (operation) |
| 10 ... 95 % Non-condensing (storage/transport) | |
| Air pressure | ≥795 hPa ≈ 2000 m |
| Degree of protection acc. to IEC 60529 | IP40 mated condition |
| 10/100 Mbit/s (M12D-Ports) | 8 x |
|---|---|
| Transmission standard | 10BASE-T |
| 100BASE-TX | |
| Auto-negotiation | Yes |
| Auto-polarity | Yes |
| Auto-MDI(X) | Yes |
| Transmission physics | Twisted Pair Cat. 5 |
| Data rate | 10 Mbit/s |
| 100 Mbit/s | |
| Transmission length | 100 m |
| Material (hood/housing) | Aluminium |
|---|---|
| Length | 152 mm |
| Width | 100 mm |
| Height | 43.85 mm |
| RoHS | compliant with exemption |
| RoHS exemptions | 6(c): Copper alloy containing up to 4 % lead by weight |
| ELV status | compliant with exemption |
| China RoHS | 50 |
| REACH Annex XVII substances | Not contained |
| REACH ANNEX XIV substances | Not contained |
| REACH SVHC substances | Yes |
| REACH SVHC substances | Lead |
| ECHA SCIP number | bbcc04b5-5176-4454-afbc-a635daae5e7b |
| California Proposition 65 substances | Yes |
| California Proposition 65 substances | Lead |
| Specifications | EN 50155 Railway applications |
|---|---|
| EN 50121-3-2 Railway applications EMC | |
| EN 61000-6-2 EMC Interference immunity | |
| EN 55035 EMC Interference immunity | |
| EN 61000-4-2 Electrostatic discharge (ESD) | |
| EN 61000-4-3 Electromagnetic field | |
| EN 61000-4-4 Rapid transients (burst) | |
| EN 61000-4-5 Surge voltages | |
| EN 61000-4-6 conducted disturbances | |
| EN 61000-6-4 emission standard | |
| EN 55032 emission standard | |
| IEC 60721-3 Mechanical stability | |
| IEC 60068-2-6 Vibration (sinusoidal) | |
| IEC 60068-2-27 Shock | |
| IEEE 802.3 | |
| Approvals | CE |
| FCC | Yes |
| Packaging size | 1 |
|---|---|
| Net weight | 415 g |
| Country of origin | Germany |
| European customs tariff number | 85176200 |
| eCl@ss | 19170130 Network switch (general application) |
| ETIM | EC000734 |
| UNSPSC 24.0 | 43222612 |
