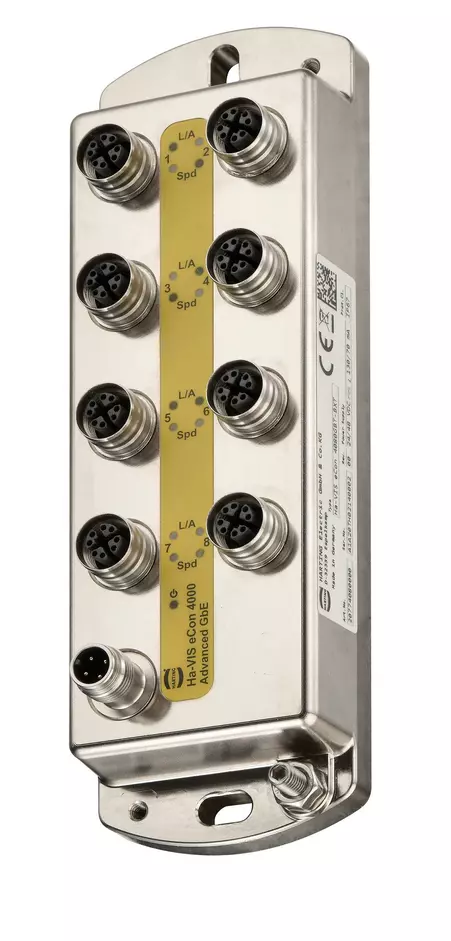

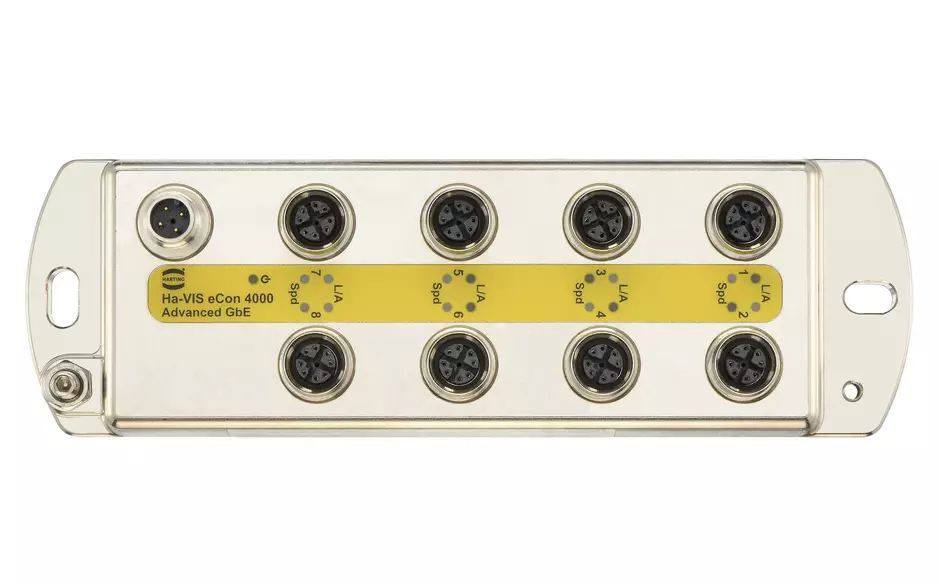

Ha-VIS eCon 4080GBT-BXT

Article No.: 20 77 408 0000

Image is for illustration purposes only. Please refer to product description.

Industrial Ethernet Switches

Article No.: 20 77 408 0000

to see prices and availability.

to see prices and availability.

Industrial Ethernet Switches

Unmanaged

Gigabit Ethernet

Nominal voltage: 24, 48

Total number of ports: 8

10/100/1000 Mbit/s (M12-ports X-coding): 8

Operating temperature: -40 ... +70 °C

Identification

Series	Ha-VIS eCon 4000
Element	Industrial Ethernet Switches
Specification	Unmanaged
Type of Ethernet	Gigabit Ethernet

Version

Termination data

Nominal voltage	24 V DC
Nominal voltage	48 V DC
Permissible voltage	12 ... 60 V DC
Surge protection	Yes
Operating current	‌130 mA @ 24 V DC
Operating current	‌70 mA @ 48 V DC
Supply circuit	SELV (Circuit Breaker 10 A)
Starting current	‌1.3 A @ 24 V DC
Starting current	‌2.9 A @ 48 V DC
Overcurrent protection	‌2 A at input
Power consumption	≤3.3 W @ 24 V DC
Termination method	M12 A-coding
Number of contacts	4
Conductor cross-section	0.5 mm²
Conductor cross-section [AWG]	AWG 20
Pinout	+ / - / - / +
Reverse polarity protection	Yes

Technical characteristics

Pollution degree	2
Overvoltage category	III (protection by low voltage)
Operating temperature	-40 ... +70 °C
Storage temperature	-40 ... +85 °C
Relative humidity	0 ... 95 % Non-condensing (operation)
Relative humidity	0 ... 95 % Non-condensing (storage/transport)
Air pressure	≥795 hPa ≈ 2000 m
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition

Ethernet ports copper

Material properties

Specifications and approvals

Specifications	EN 50155 Railway applications
	EN 50121-3-2 Railway applications EMC
	EN 61000-6-2 EMC Interference immunity
	EN 55035 EMC Interference immunity
	EN 61000-4-2 Electrostatic discharge (ESD)
	EN 61000-4-3 Electromagnetic field
	EN 61000-4-4 Rapid transients (burst)
	EN 61000-4-5 Surge voltages
	EN 61000-4-6 conducted disturbances
	EN 61000-6-4 emission standard
	EN 55032 emission standard
	IEC 60721-3 Mechanical stability
	IEC 60068-2-6 Vibration (sinusoidal)
	IEC 60068-2-27 Shock
	IEEE 802.3
UL / CSA	UL in preparation
Approvals	CE
Approvals	E1 in preparation
FCC	Yes

Commercial data

Packaging size	1
Net weight	430 g
Country of origin	Germany
European customs tariff number	85176200
GTIN	5713140195356
eCl@ss	19170130 Network switch (general application)
ETIM	EC000734
UNSPSC 24.0	43222612
