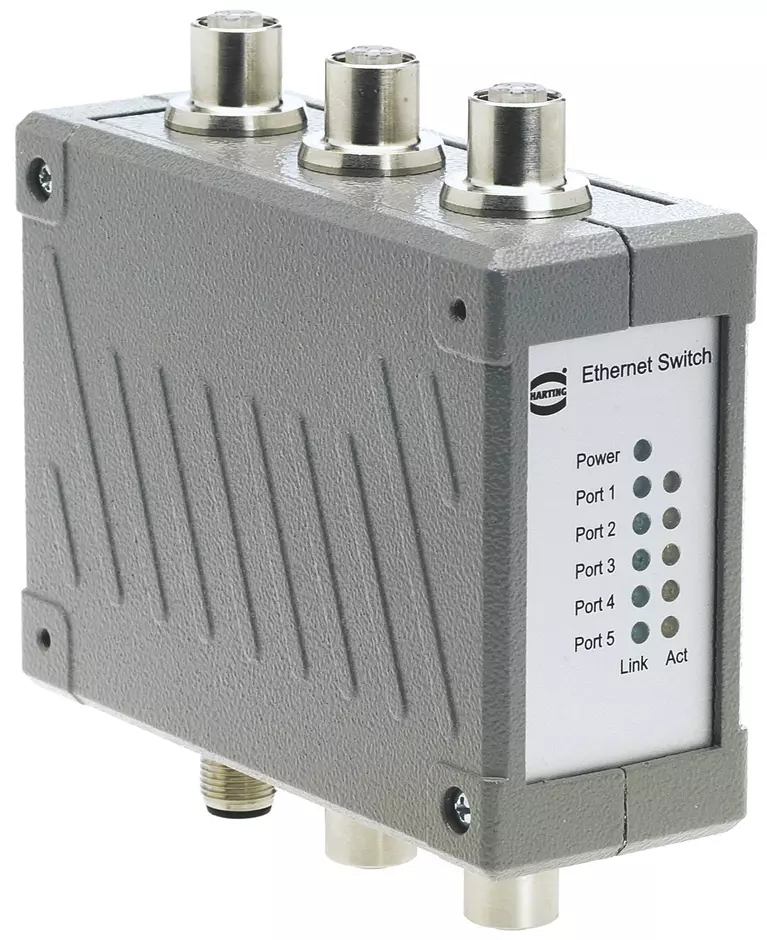

Ha-VIS eCon 7050-B1

Article No.: 20 70 305 3943

Image is for illustration purposes only. Please refer to product description.

Industrial Ethernet Switches

Article No.: 20 70 305 3943

to see prices and availability.

to see prices and availability.

Industrial Ethernet Switches

Unmanaged

Fast Ethernet

Nominal voltage: 24, 48

Total number of ports: 5

10/100 Mbit/s (M12D-Ports): 5

Operating temperature: -40 ... +70 °C

Identification

Series	Ha-VIS eCon 7000
Element	Industrial Ethernet Switches
Specification	Unmanaged
Type of Ethernet	Fast Ethernet

Version

Termination data

Nominal voltage	24 V DC
Nominal voltage	48 V DC
Permissible voltage	12 ... 60 V DC
Surge protection	Yes
Operating current	<110 mA @ 24 V DC
Supply circuit	SELV (Circuit Breaker 10 A)
Termination method	M12 A-coding
Number of contacts	4
Pinout	+ / - / - / +
Reverse polarity protection	Yes

Technical characteristics

Operating temperature	-40 ... +70 °C
Storage temperature	-40 ... +85 °C
Relative humidity	10 ... 95 % Non-condensing (operation)
Relative humidity	10 ... 95 % Non-condensing (storage/transport)
Air pressure	≥795 hPa ≈ 2000 m
Degree of protection acc. to IEC 60529	IP65 mated condition
Degree of protection acc. to IEC 60529	IP67 mated condition
MTBF	≈ 1140,000 h

Ethernet ports copper

Material properties

Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Powder-coated
Length	120 mm
Width	45 mm
Height	87 mm
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	EN 55022 Radio disturbance characteristics
	EN 61000-4-2 Electrostatic discharge (ESD)
	EN 61000-4-3 Electromagnetic field
	EN 61000-4-4 Rapid transients (burst)
	EN 61000-4-5 Surge voltages
	EN 61000-4-6 conducted disturbances
	EN 61000-6-4 emission standard
	IEC 60068-2-6 Vibration (sinusoidal)
Approvals	CE

Commercial data

Packaging size	1
Net weight	780 g
Country of origin	Germany
European customs tariff number	85176200
GTIN	5713140134416
eCl@ss	19170130 Network switch (general application)
ETIM	EC000734
UNSPSC 24.0	43222612
