Han 107DDD F-c

Article No.: 09 16 107 2101

NewConfigurable

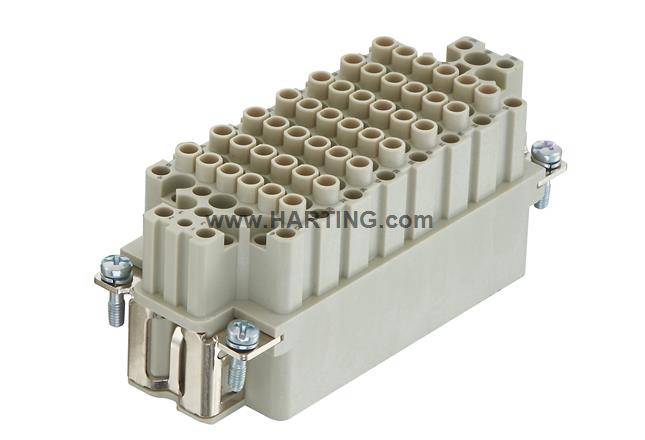

Image is for illustration purposes only. Please refer to product description.

NewConfigurable

Inserts

Article No.: 09 16 107 2101

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌10 A

Size: 16 B

Contacts: 107

Conductor cross-section: 0.14 ... 2.5 mm²

Identification

Category	Inserts
Series	Han^® DDD

Version

Termination method	Crimp termination
Gender	Female
Size	16 B
Number of contacts	107
PE contact	Yes
Details	PE connection with a Han D^® crimp contact
Details	Please order crimp contacts separately.

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	82.46 g
Country of origin	Vietnam
European customs tariff number	85366990
GTIN	5713140185814
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
