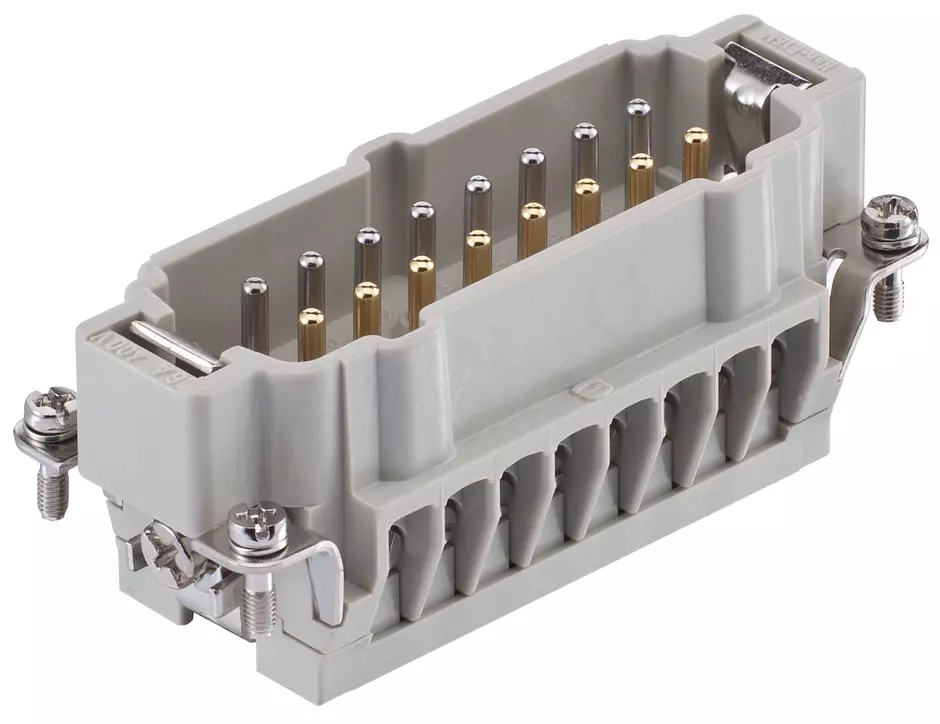

Han 16E-Male-Screw Fe(Au)/CuNi Type J

Article No.: 09 33 016 2691

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 33 016 2691

to see prices and availability.

to see prices and availability.

Inserts

Screw termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌16 A

Size: 16 B

Contacts: 16

Conductor cross-section: 1 ... 2.5 mm²

Identification

Version

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	22.293 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140051423
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
