Han 16HPR-Compact-HSE-LC-SCL-M32

Article No.: 19 40 516 1512

NewConfigurable

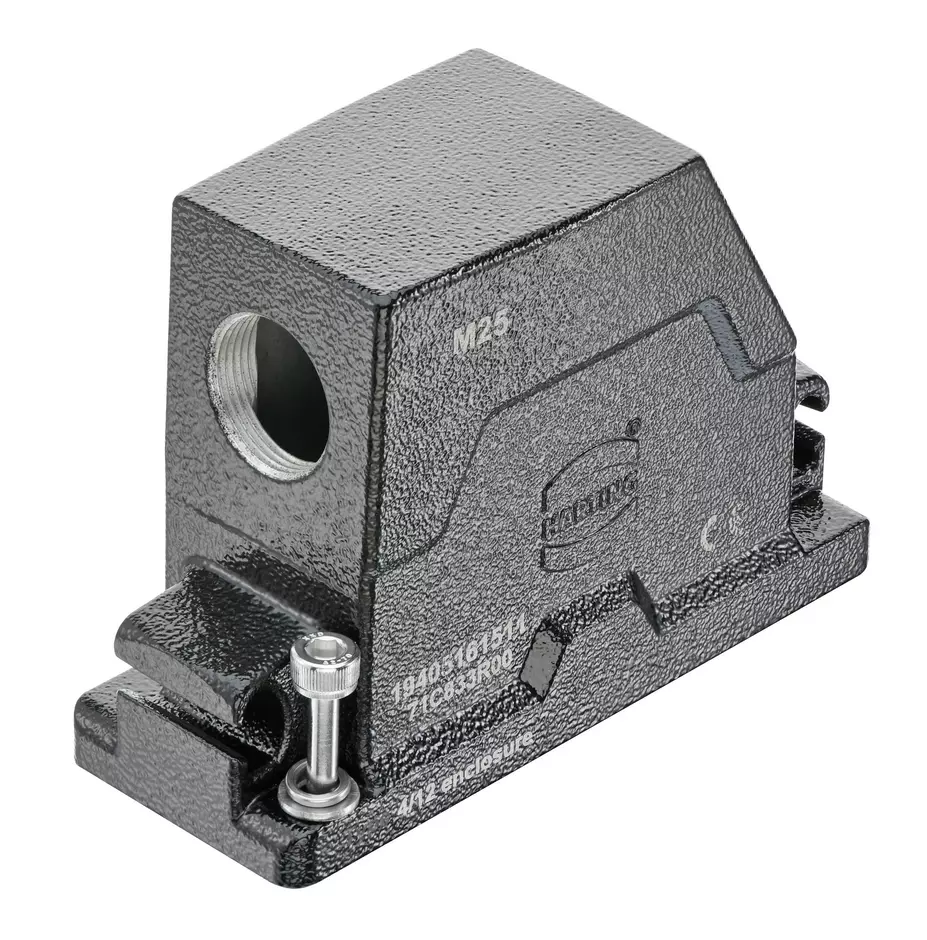

Image is for illustration purposes only. Please refer to product description.

NewConfigurable

Hood

Article No.: 19 40 516 1512

to see prices and availability.

to see prices and availability.

Hood

Size: 16 B

Low construction

Screw locking

Stainless steel

Side entry

1x M32

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Identification

Version

Size	16 B
Version	Side entry
Number of cable entries	1
Cable entry	1x M32
Locking type	Screw locking
Field of application	Hoods/housings for harsh outdoor environments

Technical characteristics

Tightening torque (screw locking)	‌ 4 Nm
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP6K9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Material (hood/housing)	Aluminium die-cast
Material (hood/housing)	Corrosion resistant
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (locking)	Stainless steel
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	375 g
Country of origin	China
European customs tariff number	85389099
GTIN	5713140174108
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
