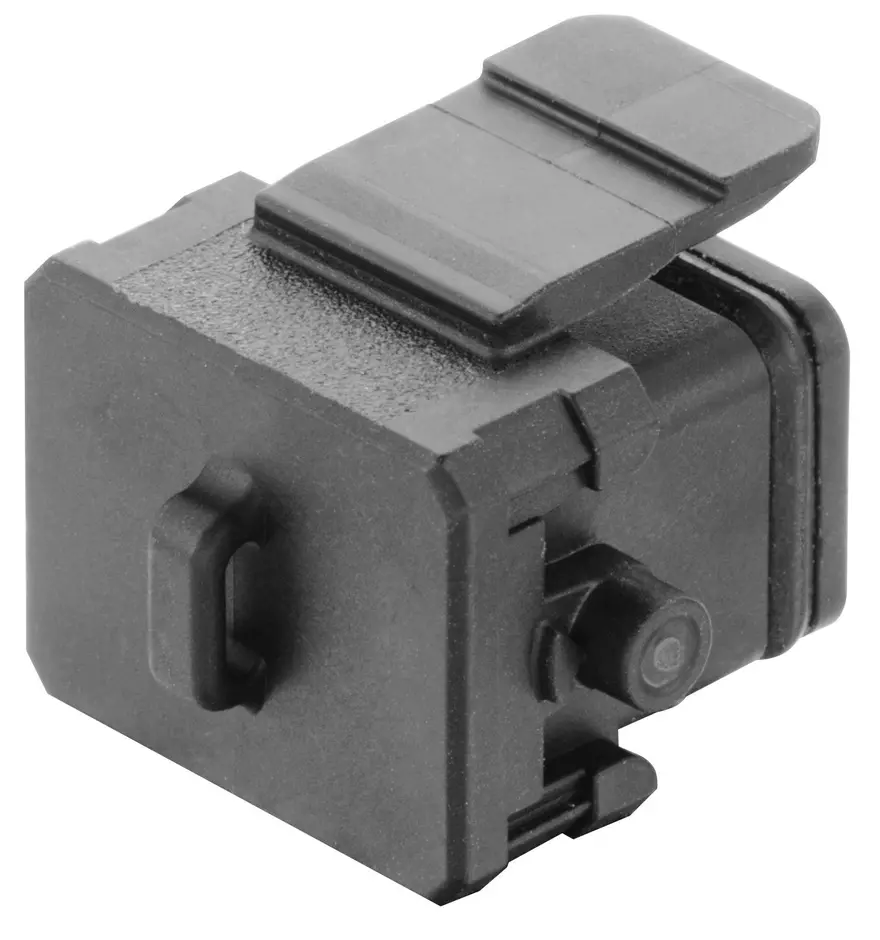

Han 1A-CP-Lever/Latch-male insert-V2

Article No.: 09 10 000 5402

New

Image is for illustration purposes only. Please refer to product description.

New

Protection cover

Article No.: 09 10 000 5402

to see prices and availability.

to see prices and availability.

Protection cover

for male inserts, 09 10 004 300X, 09 10 008 300X, 09 10 002 260X, 09 10 003 260X

Material (hood/housing): Polyamide (PA)

RAL 9005 (jet black)

Degree of protection: IP65

Identification

Category	Accessories
Series	Han^® 1A
Type of accessory	Protection cover
Description of the accessory	for male inserts
	09 10 004 300X
	09 10 008 300X
	09 10 002 260X
	09 10 003 260X

Technical characteristics

Limiting temperature	-30 ... +90 °C
Degree of protection acc. to IEC 60529	IP65

Material properties

Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 9005 (jet black)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained

Commercial data

Packaging size	10
Net weight	4 g
Country of origin	Romania
European customs tariff number	85389099
GTIN	5713140191839
eCl@ss	27440208 Cap for industrial connectors
ETIM	EC002314
UNSPSC 24.0	39121467
