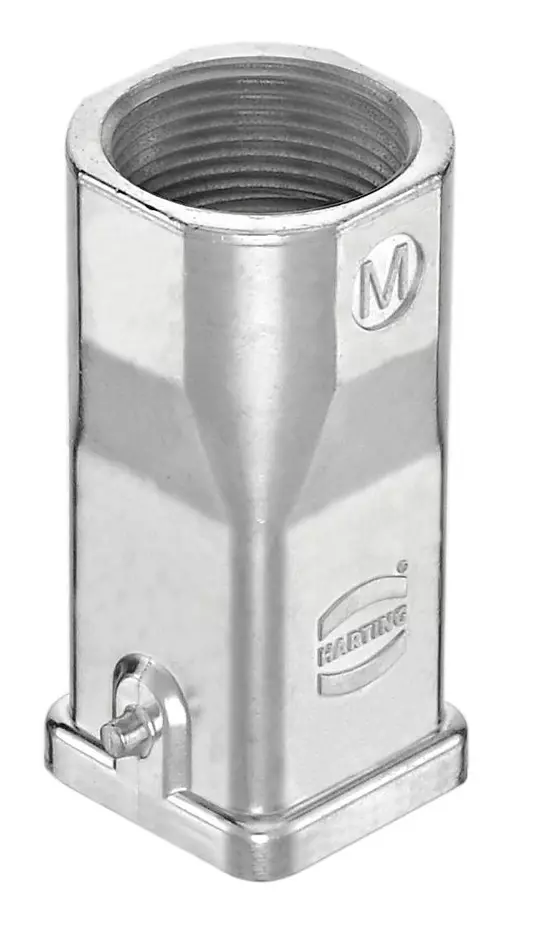

Han 3 EMC Hood M25

Article No.: 19 62 003 1445

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Hood

Article No.: 19 62 003 1445

to see prices and availability.

to see prices and availability.

Hood

Size: 3 A

Single locking lever

Top entry

1x M25

Material (hood/housing): Zinc die-cast

Uncoated

Unpainted

Identification

Version

Size	3 A
Version	Top entry
Number of cable entries	1
Cable entry	1x M25
Locking type	Single locking lever
Field of application	Hoods/Housings for higher EMC requirements
Pack contents	Please order seal screw separately.

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP44
	IP65 With seal screw
	IP67 With seal screw
Type rating acc. to UL 50 / UL 50E	12

Material properties

Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Uncoated
Colour (hood/housing)	Unpainted
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Approvals	CE
Approvals	DNV GL

Commercial data

Packaging size	1
Net weight	18.75 g
Country of origin	China
European customs tariff number	85389099
GTIN	5713140132351
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
