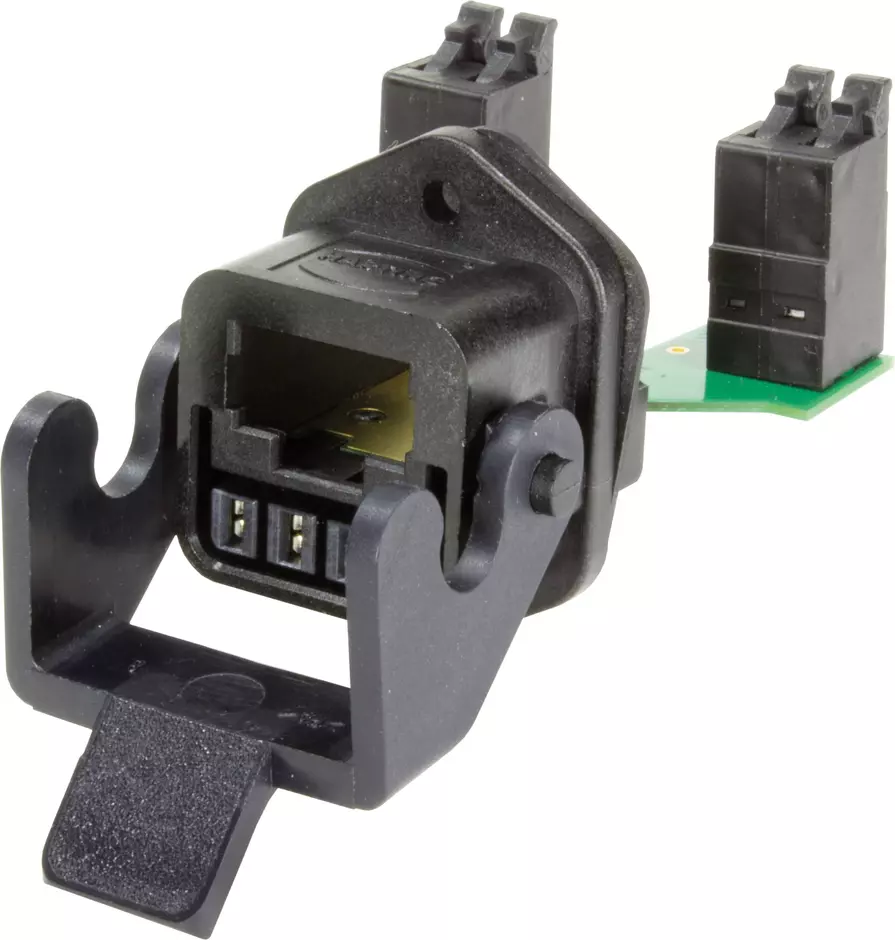

Han 3A RJ45 Hybrid PFT plastic

Article No.: 09 45 225 1761

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 45 225 1761

to see prices and availability.

to see prices and availability.

Connectors

Panel feed through Straight

Contacts: 4

Size: 3 A

Material: Thermoplastic

Identification

Version

Size	3 A
Shielding	Fully shielded, 360° shielding contact
Number of contacts	4
Number of power contacts	4
Pack contents	Please order HIFF insert separately.

Technical characteristics

Conductor cross-section	1.5 mm² Power
Conductor cross-section [AWG]	AWG 12 Power
Rated current (data)	1.76 A
Rated voltage (data)	‌ 50 V AC
Rated voltage (data)	‌ 60 V DC
Rated current (power)	16 A
Rated voltage (power)	‌ 48 V DC
Transmission characteristics	Cat. 6 Class E up to 250 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 500

Material properties

Material (hood/housing)	Thermoplastic
Colour (hood/housing)	Black
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	15 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140224124
eCl@ss	27440113 Rectangular connectors (set)
ETIM	EC002636
UNSPSC 24.0	39121408
