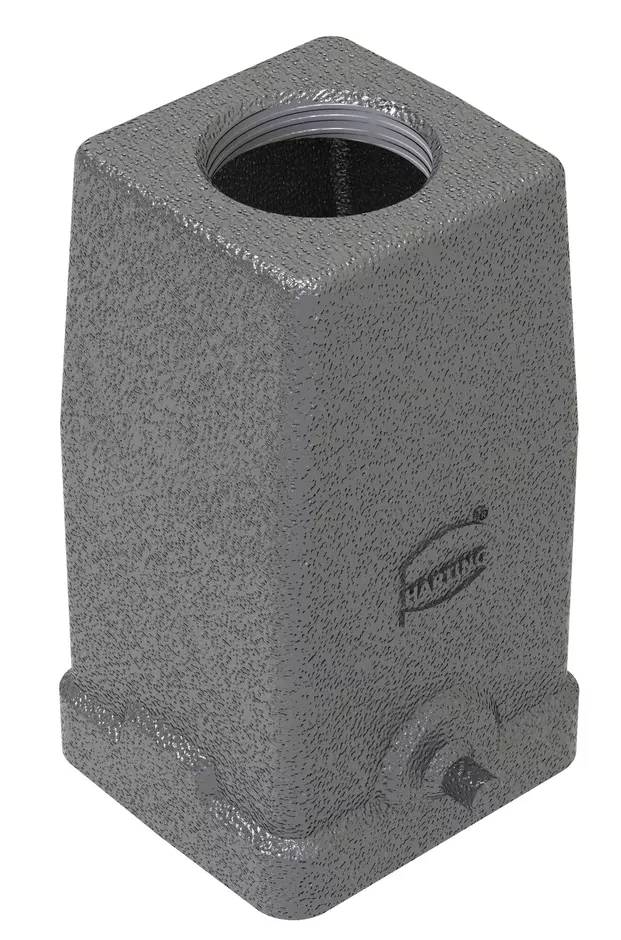

Han 4B-HTE-M25

Article No.: 19 20 004 1441

New

Image is for illustration purposes only. Please refer to product description.

New

Hood

Article No.: 19 20 004 1441

to see prices and availability.

to see prices and availability.

Hood

Size: 4 B

High construction

Single locking lever

Top entry

1x M25

Material (hood/housing): Aluminium die-cast

Powder-coated

RAL 7037 (dust grey)

Identification

Version

Locking type	Single locking lever
Size	4 B
Version	Top entry
Number of cable entries	1
Cable entry	1x M25
Field of application	Standard hoods/housings for industrial connectors

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65
	IP66
	IP67
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
PFAS	No
Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 7037 (dust grey)

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	88.5 g
Country of origin	China
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
