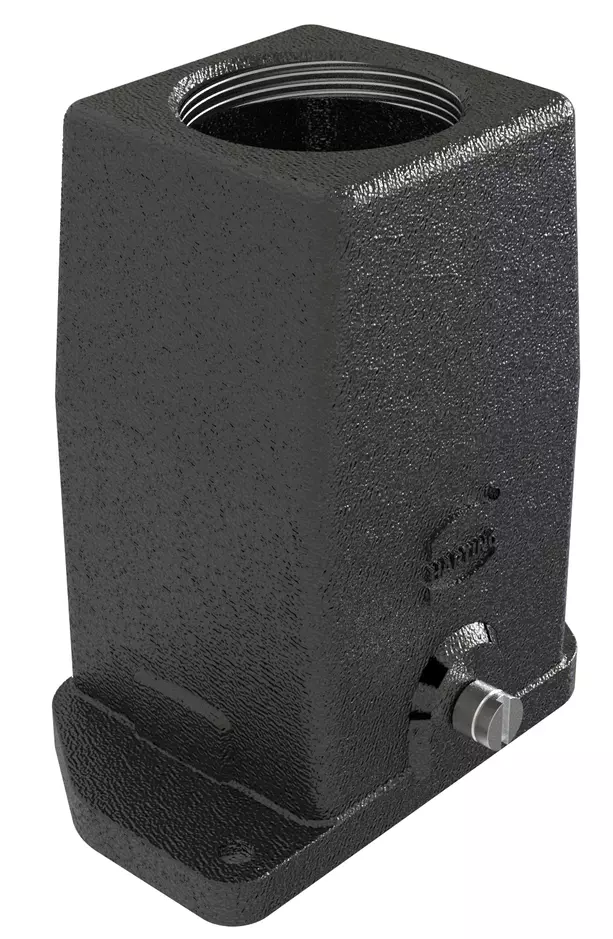

Han 4HPR-HTE-for CL-M32

Article No.: 19 40 004 0482

New

Image is for illustration purposes only. Please refer to product description.

New

Hood

Article No.: 19 40 004 0482

to see prices and availability.

to see prices and availability.

Hood

Size: 4 B

Central locking lever (on the hood)

Stainless steel

Top entry

1x M32

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Identification

Version

Locking type	Central locking lever (on the hood)
Size	4 B
Version	Top entry
Number of cable entries	1
Cable entry	1x M32
Field of application	Hoods/housings for harsh outdoor environments

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	no requirements (flammable mass < 10g)
ELV status	compliant
California Proposition 65 substances	Not contained
PFAS	No
Material (hood/housing)	Aluminium die-cast
Material (hood/housing)	Corrosion resistant
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (locking)	Stainless steel

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	150.56 g
Country of origin	China
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
