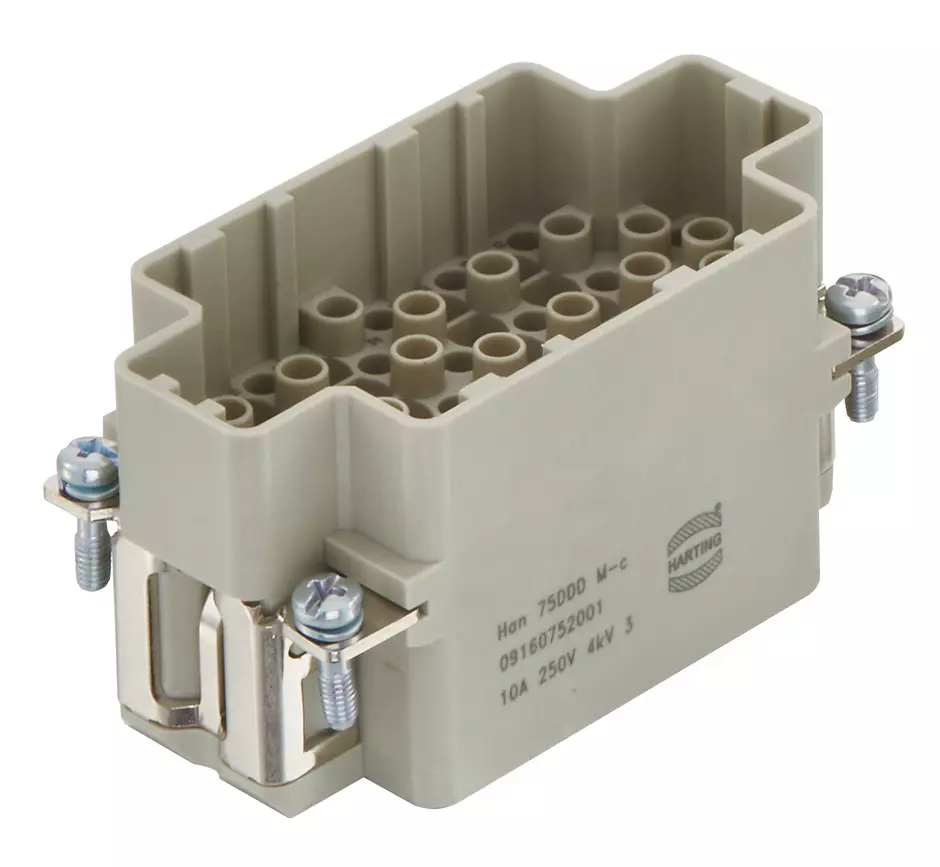

Han 75DDD M-c

Article No.: 09 16 075 2001

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 16 075 2001

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌10 A

Size: 10 B

Contacts: 75

Conductor cross-section: 0.14 ... 2.5 mm²

Identification

Category	Inserts
Series	Han^® DDD

Version

Termination method	Crimp termination
Gender	Male
Size	10 B
With wire protection	No
Number of contacts	75
PE contact	Yes
Details	PE connection with a Han D^® crimp contact
Details	Please order crimp contacts separately.

Technical characteristics

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	55.12 g
Country of origin	Vietnam
GTIN	5713140185784
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
