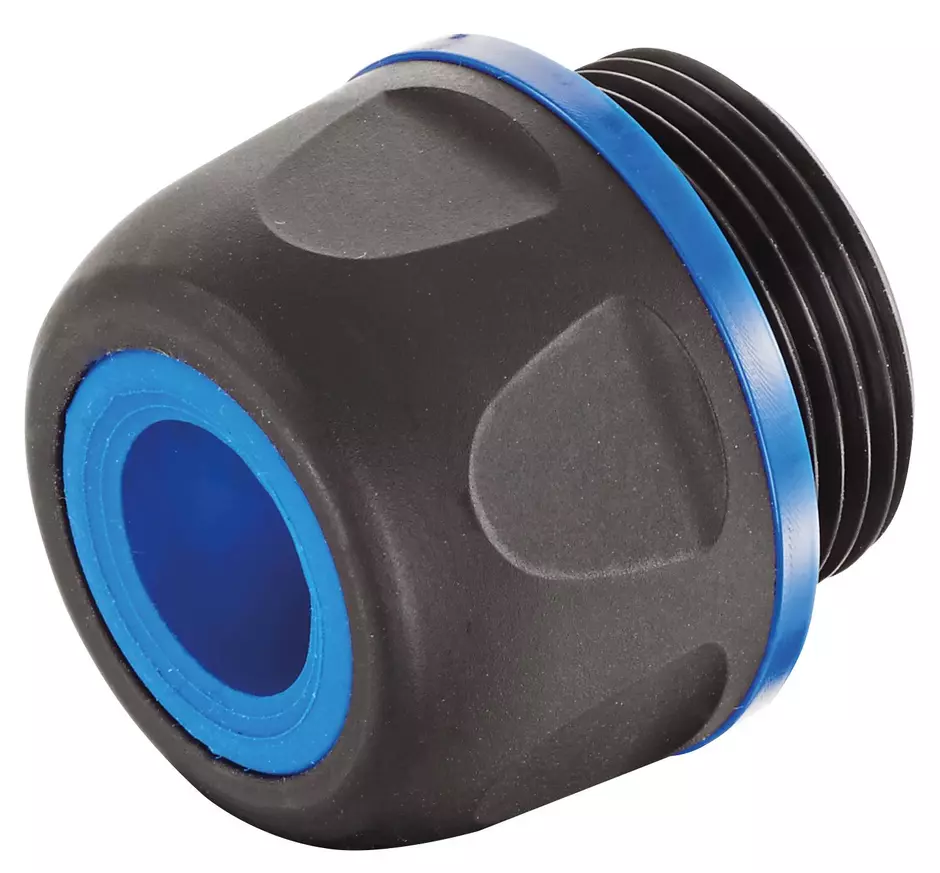

Han CGM-P F+B M25x1,5 D. 16-18 black

Article No.: 19 15 503 5199

Image is for illustration purposes only. Please refer to product description.

Cable gland

Article No.: 19 15 503 5199

to see prices and availability.

to see prices and availability.

Cable gland

M25

Clamping range: 16 ... 18 mm

Material (cable glands): Polyamide (PA) Black

IP67 / IP69

Wrench size: 32

Identification

Version

Pack contents	With spacing washer

Technical characteristics

Wrench size	32
Limiting temperature	-40 ... +100 °C
Degree of protection acc. to IEC 60529	IP67 / IP69
Size	M25
Clamping range	16 ... 18 mm

Material properties

Roughness of the surface	≤ 0.8 µm
Material (cable glands)	Polyamide (PA)
Colour (cable gland)	Black
Colour (seal)	Blue
Material (accessories)	VA 1.4305
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	30 g
Country of origin	Germany
European customs tariff number	39174000
GTIN	5713140192775
eCl@ss	27140801 Screwed cable gland (electrical)
ETIM	EC000441
UNSPSC 24.0	39121431
