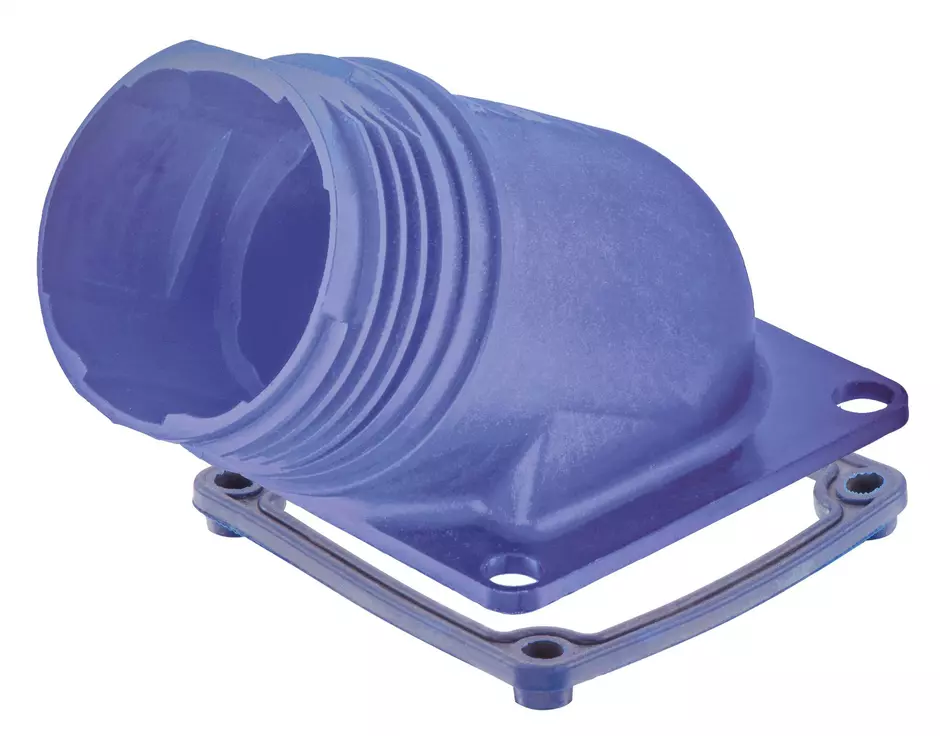

Bulkhead mounted housing

Article No.: 09 15 513 0901

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

Angled, With three through holes for fixing screws

Size: 3 A

Screw locking

Material (hood/housing): Polypropylen

Blue

Material (seal): EPDM, Silicone

Identification

Category	Hoods / Housings
Series	Han® F+B
Type of hood/housing	Bulkhead mounted housing
Description of hood/housing	Angled
Description of hood/housing	With three through holes for fixing screws

Version

Locking type	Screw locking
Size	3 A
Field of application	Food and beverage connectors
Details	Cleaning: For cleaning with high pressure lances, a cleaning distance > 30 cm is recommended in order to avoid mechanical damage to the connector’s exterior parts.
Details	Strain relief: A suitable strain relief is required to enable the F+B connectorto resist the stress caused e.g. by the daily cleaning of the machinery. DIN VDE 0100-520: 2013-06 defines the stress relief for a connector depending on the outer diameter of the cable.
Han-Easy Lock®	false

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Tightening torque	‌1 Nm Fixing screws M3
Mating cycles	500
Degree of protection acc. to IEC 60529	IP67 locked condition
Degree of protection acc. to IEC 60529	IP6K9K acc. to ISO 20653

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
Material (hood/housing)	Polypropylen
Colour (hood/housing)	Blue
Roughness of the surface	1.12 µm
Material (seal)	EPDM
Material (seal)	Silicone
Colour (seal)	Blue
Material flammability class acc. to UL 94	HB
EG1935/2004	compliant

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	32 g
Country of origin	Germany
GTIN	5713140183315
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
