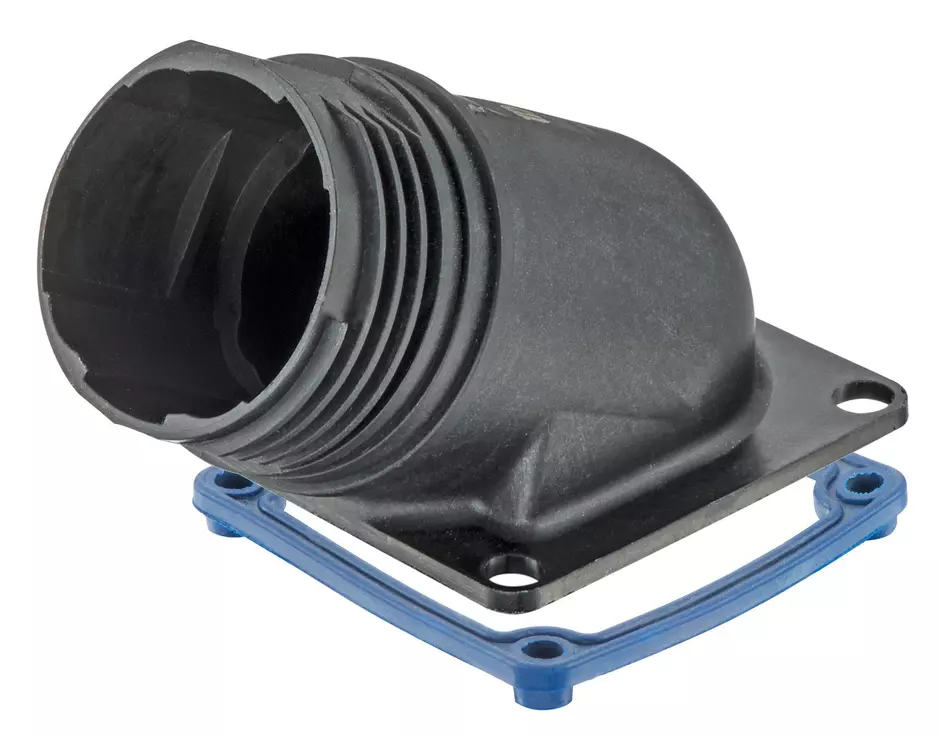

Han F+B housing bulkhead mount-angled

Article No.: 09 15 503 0901

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Bulkhead mounted housing

Article No.: 09 15 503 0901

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

Angled, With three through holes for fixing screws

Size: 3 A

Screw locking

Material (hood/housing): Polypropylen

Black

Material (seal): EPDM, Silicone

Identification

Category	Hoods / Housings
Series	Han^® F+B
Type of hood/housing	Bulkhead mounted housing
Description of hood/housing	Angled
Description of hood/housing	With three through holes for fixing screws

Version

Size	3 A
Locking type	Screw locking
Field of application	Food and beverage connectors
Details	Cleaning: For cleaning with high pressure lances, a cleaning distance > 30 cm is recommended in order to avoid mechanical damage to the connector’s exterior parts.
Details	Strain relief:A suitable strain relief is required to enable the F+B connectorto resist the stress caused e.g. by the daily cleaning of the machinery. DIN VDE 0100-520: 2013-06 defines the stress relief for a connector depending on the outer diameter of the cable.

Technical characteristics

Tightening torque	‌1 Nm Fixing screws M3
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP67 locked condition
Degree of protection acc. to IEC 60529	IP6K9K acc. to ISO 20653

Material properties

Material (hood/housing)	Polypropylen
Roughness of the surface	≤ 1.12 µm
Colour (hood/housing)	Black
Material (seal)	EPDM
Material (seal)	Silicone
Colour (seal)	Blue
Material flammability class acc. to UL 94	HB
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
EG1935/2004	compliant
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	29.72 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140023611
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
