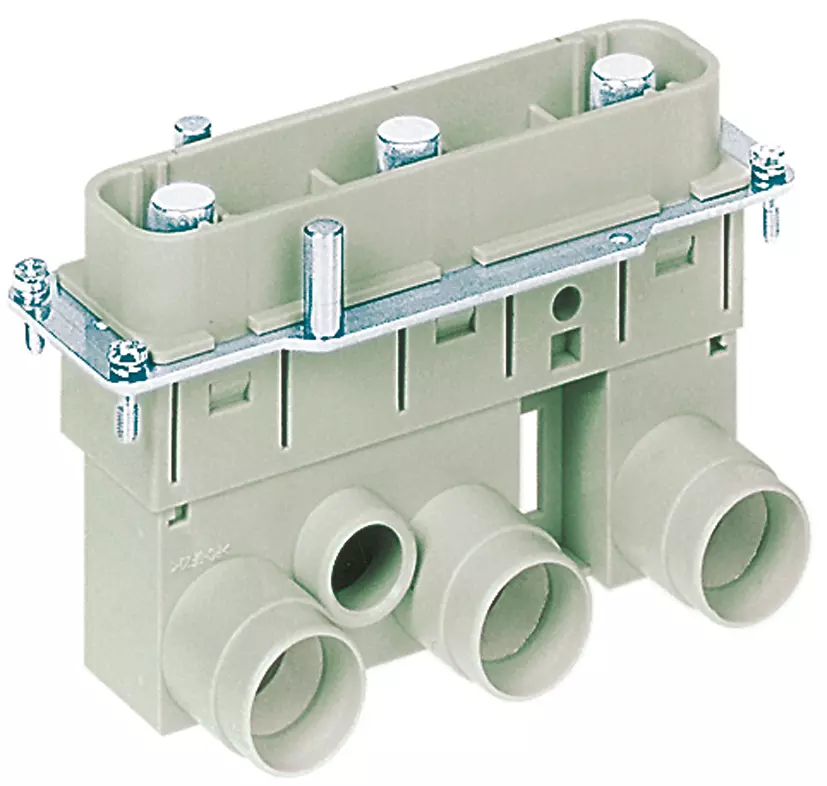

Han K 3/0 Pos. male Insert Screw Term.

Article No.: 09 38 005 2622

Image is for illustration purposes only. Please refer to product description.

Inserts

Article No.: 09 38 005 2622

to see prices and availability.

to see prices and availability.

Inserts

Axial screw termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌200 A

Size: 24 B

Contacts: 3

Conductor cross-section: 35 ... 70 mm²

Copper alloy

Silver plated

Identification

Version

Technical characteristics

Conductor cross-section	35 ... 70 mm²
Rated current	‌ 200 A
Rated voltage conductor-earth	1,150 V
Rated voltage conductor-conductor	2,000 V
Rated impulse voltage	8 kV
Pollution degree	3
Rated current acc. to UL	200 A
Rated voltage acc. to UL	600 V
Rated current acc. to CSA	160 A
Rated voltage acc. to CSA	600 V
Insulation resistance	>10¹⁰ Ω
Contact resistance	≤ 0.2 mΩ
Stripping length	22 mm
Tightening torque	‌8 Nm @ 35 mm²
	‌9 Nm @ 50 mm²
	‌10 Nm @ 70 mm²
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	402.06 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140056169
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
