Han K 9/9/18-F-C

Article No.: 09 38 036 3101

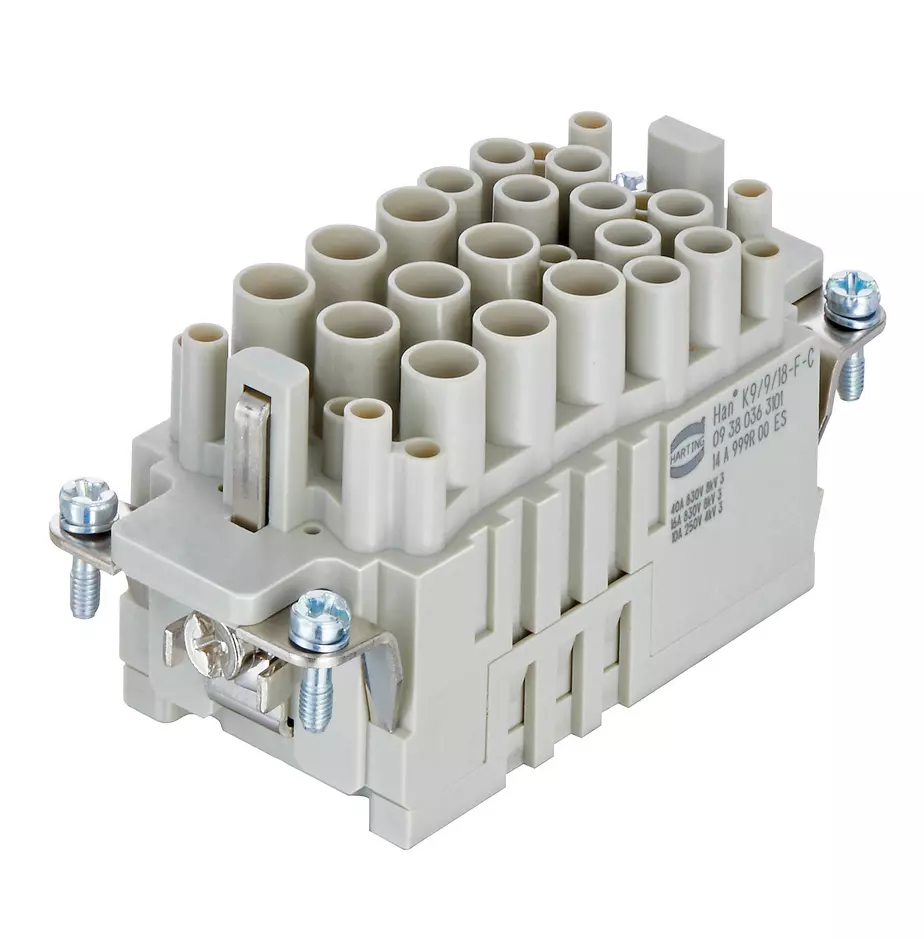

Image is for illustration purposes only. Please refer to product description.

Inserts

Article No.: 09 38 036 3101

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Polycarbonate (PC)

RAL 7032 (pebble grey)

Size: 16 B

Contacts: 36

Conductor cross-section: 1.5 ... 6 mm² Power 0.14 ... 4 mm² Power 0.14 ... 2.5 mm² Signal

Identification

Version

Termination method	Crimp termination
Gender	Female
Size	16 B
With wire protection	false
Number of contacts	36
Number of signal contacts	18
Number of power contacts	18
PE contact	true
Details	Please order crimp contacts separately.
	9x Han^® C
	9x Han E^®
	18x Han D^®
	To ensure a preleading PE-contact under all conditions, it is necessary to use guide pins/bushes (09 33 000 9908 / 09 33 000 9909).

Technical characteristics

Conductor cross-section (mm²)	1.5 ... 6 mm² Power
	0.14 ... 4 mm² Power
	0.14 ... 2.5 mm² Signal
Rated current (signal)	10 A
Rated voltage (signal)	250 V
Rated impulse voltage (signal)	4 kV
Pollution degree (signal)	3
Rated current (power)	40 A
Rated current (power)	16 A
Rated voltage (power)	830 V
Rated impulse voltage (power)	8 kV
Pollution degree (power)	3
Insulation resistance	>10¹⁰ Ω
Limiting temperature	[-40] ... [+125 °C]
Tightening torque	‌1.2 Nm PE screw M4
Recommended screw driver	Slotted 0.8 x 4.5
Recommended screw driver	PH2
Mating cycles	500

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	1.718 g
Country of origin	Romania
GTIN	5713140186460
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
