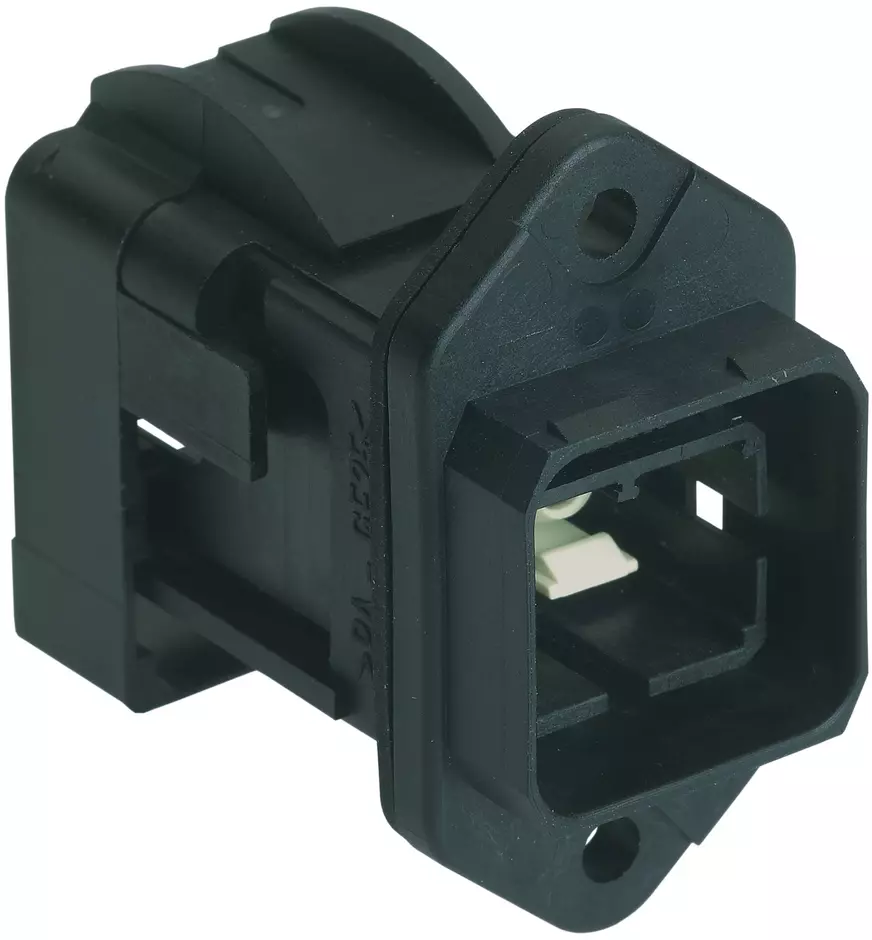

Han PushPull SCRJ WDF coupling

Article No.: 09 35 242 0333

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 35 242 0333

to see prices and availability.

to see prices and availability.

Connectors

Panel feed through AIDA compliant

Contacts: 2

PushPull

Material: Thermoplastic

Degree of protection: IP65, IP67

Identification

Category	Connectors
Identification	SCRJ
Element	Panel feed through
Specification	AIDA compliant
Type of contact	SC contact
Series	Han® PushPull (V14)
Features	Intuitive locking mechanism

Version

Technical characteristics

Limiting temperature	[-40] ... [+70 °C]
Mating cycles	750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
Material (hood/housing)	Thermoplastic
Colour (hood/housing)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	17.86 g
Country of origin	Germany
GTIN	5713140054448
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
