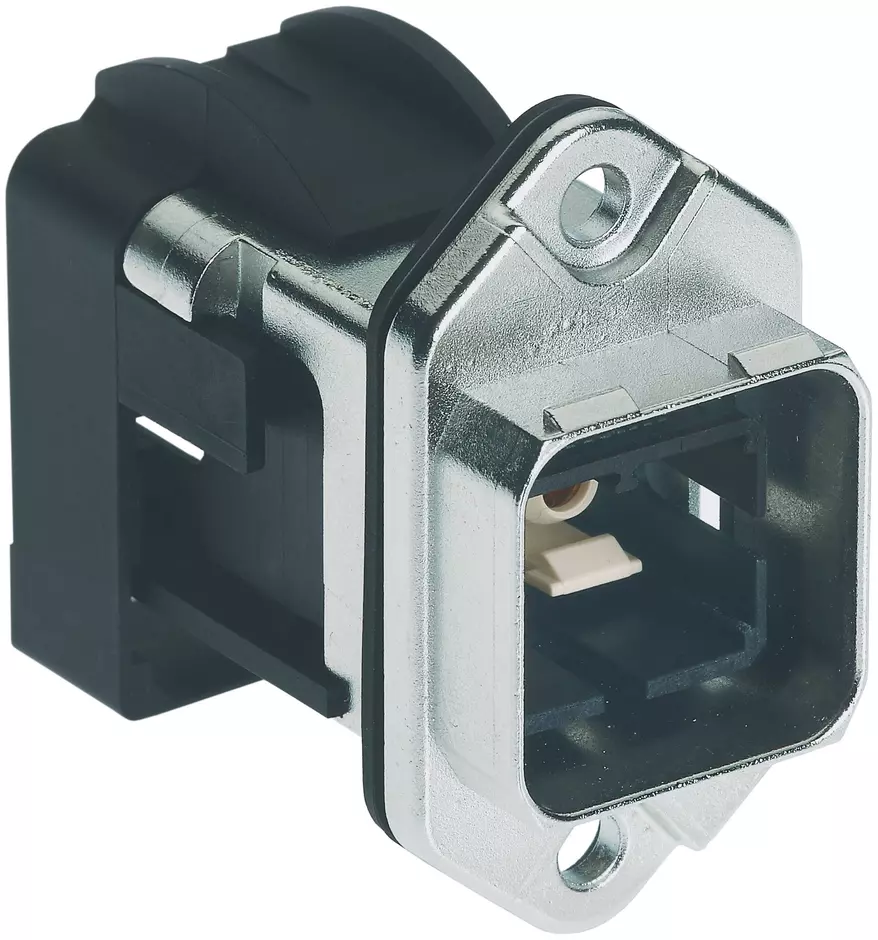

Han PushPull SCRJ metal PFT

Article No.: 09 35 242 0313

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 35 242 0313

to see prices and availability.

to see prices and availability.

Connectors

Panel feed through AIDA compliant

Contacts: 2

PushPull

Material: Zinc die-cast

Nickel plated

Degree of protection: IP65, IP67

Identification

Category	Connectors
Series	Han^® PushPull (V14)
Identification	SCRJ
Element	Panel feed through
Specification	AIDA compliant
Type of contact	SC contact
Features	Intuitive locking mechanism

Version

Technical characteristics

Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	28.46 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140054431
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
