Han S 450+_CC_HBM_B2_M8_C2_RC1_Orange

Article No.: 97 00 000 4996

Image is for illustration purposes only. Please refer to product description.

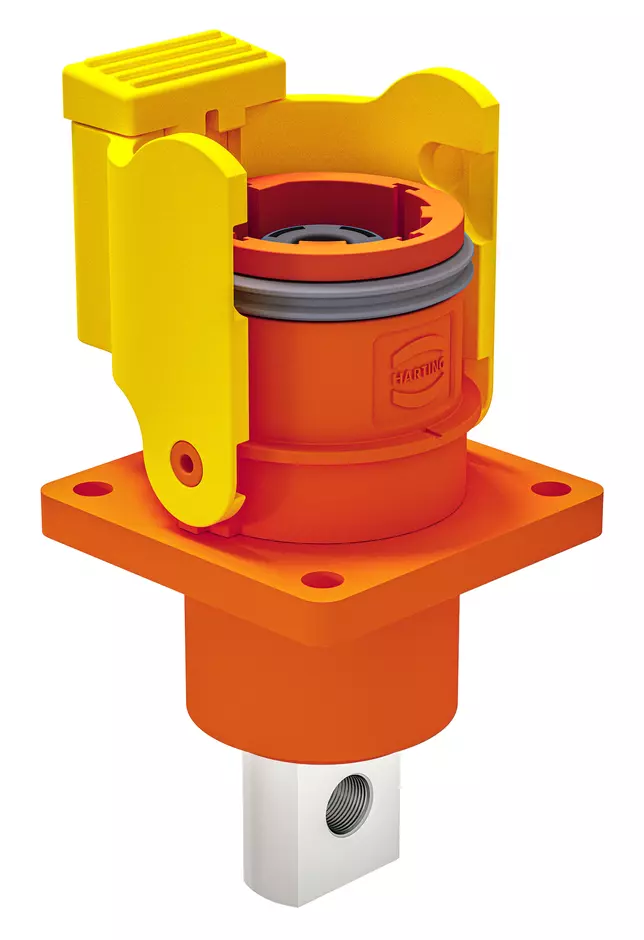

Bulkhead mounted housing

Article No.: 97 00 000 4996

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

incl. male contact with busbar termination, Short version

Single locking lever

Material (hood/housing): Polyamide (PA)

RAL 2003 (pastel orange)

Identification

Category	Hoods / Housings
Identification	Han^® S 450 Plus
Series	Han^® S
Type of hood/housing	Bulkhead mounted housing
Description of hood/housing	incl. male contact with busbar termination
Description of hood/housing	Short version

Version

Technical characteristics

Rated voltage	2000 V
Rated impulse voltage	15 kV
Pollution degree	3
Insulation resistance	>10⁹ Ω @ 2500 V DC
Contact resistance	0.3 mΩ
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Tightening torque	1 ... ‌1.1 Nm Fixing screws for receptacles
Tightening torque	7.5 ... ‌8 Nm Contacts
Number of relockings	500
Degree of protection acc. to IEC 60529	IP67 / IP69K mated condition
Degree of protection acc. to IEC 60529	IP67 unmated condition & cover closed
Overvoltage category	III

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Material (contacts)	Copper
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 2003 (pastel orange)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

Packaging size	1
Net weight	163.35 g
Country of origin	China
GTIN	5713141187565
eCl@ss	27440202 Shell for industrial connectors
