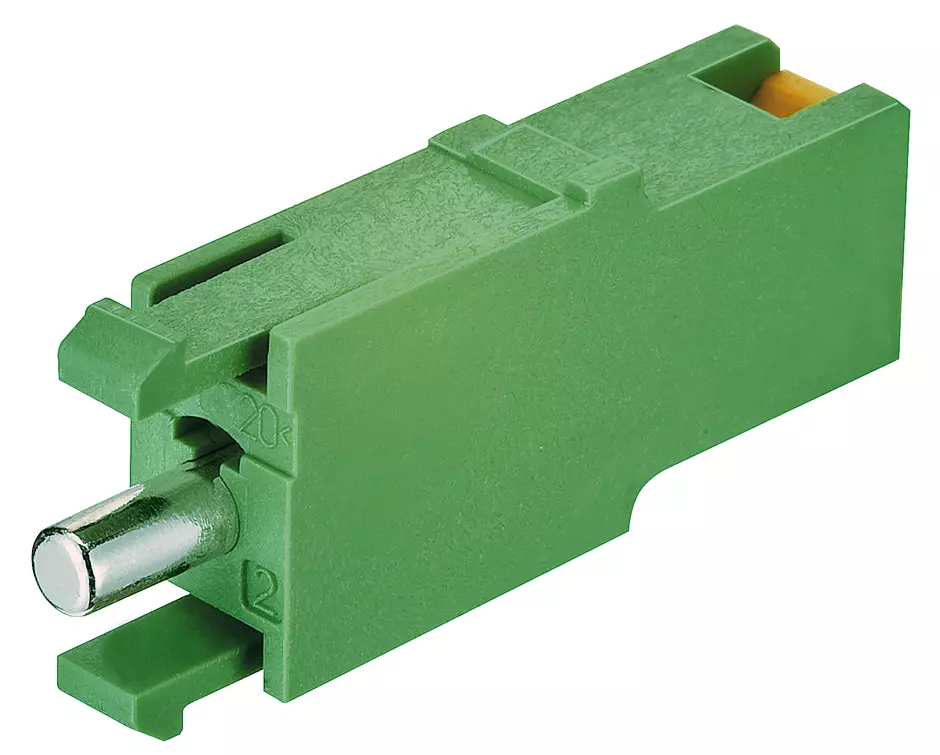

Han-Yellock PE-Contact-Chamber

Article No.: 11 05 001 2601

Image is for illustration purposes only. Please refer to product description.

PE contact chamber

Article No.: 11 05 001 2601

to see prices and availability.

to see prices and availability.

PE contact chamber

Rated current: ≤20 A

Male

Copper alloy

Silver plated

Conductor cross-section: 0.5 ... 2.5 mm²

AWG 20 ... AWG 14

Identification

Version

Technical characteristics

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
REACH SVHC substances	Lead
ECHA SCIP number	b51e5b97-eeb5-438b-8538-f1771d43c17d
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R26

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

Packaging size	10
Net weight	1.92 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140109643
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
