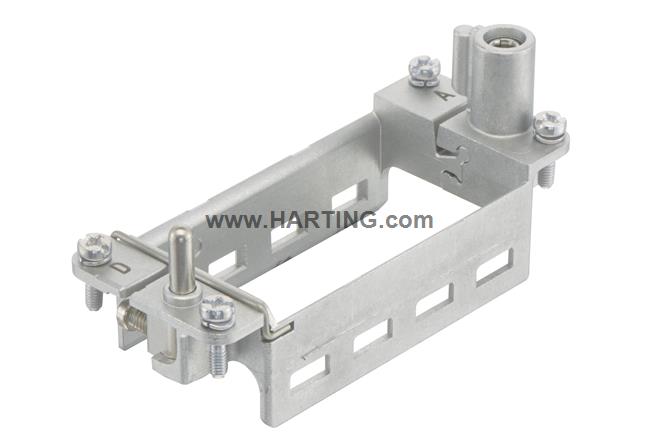

Hinged frame plus

Article No.: 09 14 016 0361

to see prices and availability.

to see prices and availability.

Hinged frame plus

for 4 modules, A ... D

Size: 16 B

Identification

Category	Accessories
Series	Han-Modular^®
Type of accessory	Hinged frame plus
Description of the accessory	for 4 modules
Description of the accessory	A ... D

Version

Size	16 B

Technical characteristics

Conductor cross-section	1 ... 10 mm² PE (power side)
	0.5 ... 2.5 mm² PE (signal side)
	The use of ferrules is recommended, conductor cross-section 10 mm² only with ferrule crimping tool 09 99 000 0374.
Stripping length	8 ... 10 mm
Tightening torque	‌0.8 Nm PE screw M3
Tightening torque	‌1.2 Nm PE screw M4
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500

Material properties

Material	Zinc die-cast
Material	Stainless steel
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	1
Net weight	70 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140161962
eCl@ss	27440206 Module carrier frame for industrial connectors
ETIM	EC002312
UNSPSC 24.0	39121421
