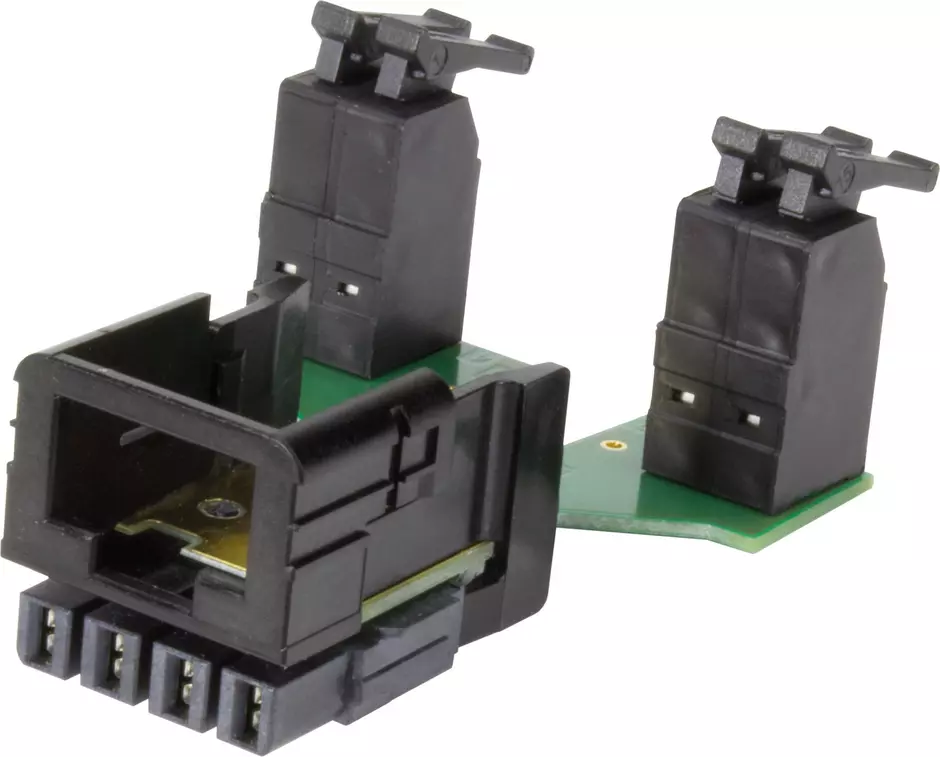

Han3A RJ45 Hybrid PFT insert Cat.6, 8+4p

Article No.: 09 45 200 1760

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 45 200 1760

to see prices and availability.

to see prices and availability.

Connectors

Panel feed through Straight

Contacts: 12

Size: 3 A

Material: Thermoplastic

Identification

Version

Size	3 A
Shielding	Fully shielded, 360° shielding contact
Number of contacts	12
Number of data contacts	8
Number of power contacts	4

Technical characteristics

Conductor cross-section	1.5 mm² Power
Conductor cross-section [AWG]	AWG 12 Power
Rated current (data)	1.76 A
Rated voltage (data)	‌ 50 V AC
Rated voltage (data)	‌ 60 V DC
Rated current (power)	16 A
Rated voltage (power)	‌ 48 V DC
Transmission characteristics	Cat. 6 Class E up to 250 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 500

Material properties

Material (hood/housing)	Thermoplastic
Colour (hood/housing)	Black
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
California Proposition 65 substances	Naphthalene

Specifications and approvals

Commercial data

Packaging size	1
Net weight	25.7 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140224117
eCl@ss	27440113 Rectangular connectors (set)
ETIM	EC002636
UNSPSC 24.0	39121408
