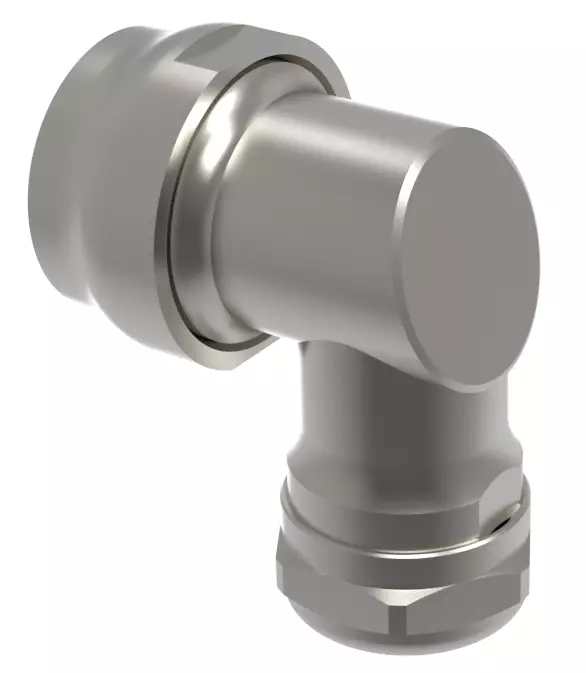

ICC20_H_BS_ANG_CG_13-17

Article No.: 19 59 120 5012

New

Image is for illustration purposes only. Please refer to product description.

New

Backshell

Article No.: 19 59 120 5012

to see prices and availability.

to see prices and availability.

Backshell

With integrated cable gland, Angled

Size: 20

Material (hood/housing): Zinc die-cast

Nickel plated

Material (seal): TPE

Degree of protection: IP67, IPX9

Identification

Version

Size	20

Technical characteristics

Limiting temperature	-40 ... +125 °C
Tightening torque	‌12 Nm Cable gland
Tightening torque	‌15 Nm Backshell
Number of relockings	≥ 10
Degree of protection acc. to IEC 60529	IP67
Degree of protection acc. to IEC 60529	IPX9
Clamping range	13 ... 17 mm

Material properties

ECHA SCIP number	564b7d75-7bf6-4cfb-acb1-2168eb61b675
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	no requirements (flammable mass < 10g)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
REACH SVHC substances	2-(2'-Hydroxy-3'-tert-butyl-5'-methylphenyl)-5-chlorobenzotriazole (UV-326)
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
PFAS	No
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated
Material (seal)	TPE
Colour (seal)	Blue

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	151 g
Country of origin	India
GTIN	5713140491182
eCl@ss	27440224 Shell for circular connectors
UNSPSC 24.0	39121405
