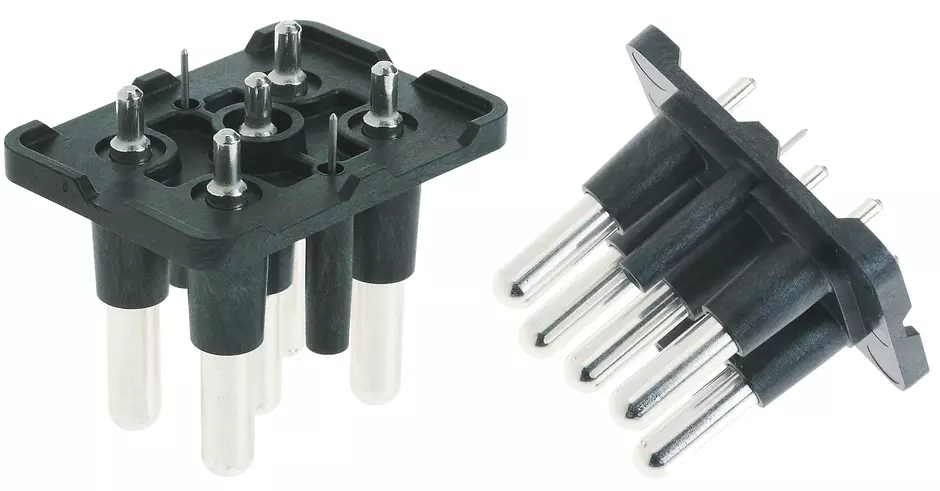

LP-Adapter Han Q 4/2

Article No.: 09 12 006 9901

Image is for illustration purposes only. Please refer to product description.

PCB adapter

Article No.: 09 12 006 9901

to see prices and availability.

to see prices and availability.

PCB adapter

In the Han® Q 4/2

Rated current: ‌30 A

Liquid crystal polymer (LCP)

Identification

Category	Accessories
Type of accessory	PCB adapter
Description of the accessory	In the Han^® Q 4/2

Version

Technical characteristics

Rated current	‌ 30 A
Rated voltage conductor-earth	400 V
Rated voltage conductor-conductor	690 V
Rated impulse voltage	6 kV
Pollution degree	2
Rated current (signal)	7.5 A
Rated voltage (signal)	250 V
Rated impulse voltage (signal)	4 kV
Pollution degree (signal)	2
Limiting temperature	-40 ... +125 °C

Material properties

Material (insert)	Liquid crystal polymer (LCP)
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076
UL / CSA	CSA-C22.2 No. 182.3 ECBT8.E235076

Commercial data

Packaging size	1
Net weight	17.305 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140017511
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
