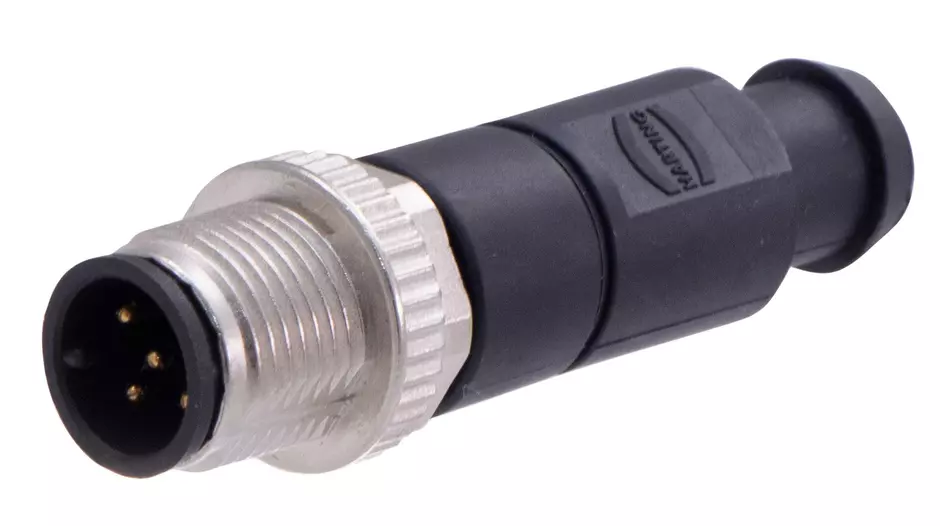

M12 A-cod 5P Male Straight

Article No.: 21 03 819 1500

Image is for illustration purposes only. Please refer to product description.

Cable connector

Article No.: 21 03 819 1500

to see prices and availability.

to see prices and availability.

Cable connector

Straight, Overmoulded

Male

A-coding

Crimp termination

Polyamide (PA)

Contacts: 5

Conductor cross-section: 0.34 mm²

Rated current: ‌4 A

Zinc die-cast

Screw locking

Degree of protection: IP65 / IP67 mated condition

Identification

Version

Technical characteristics

Conductor cross-section (mm²)	0.34 mm²
Conductor cross-section (AWG)	AWG 22
Rated voltage	‌ 60 V AC
Rated voltage	‌ 60 V DC
Rated current	‌ 4 A
Pollution degree	3
Limiting temperature	-20 ... +80 °C
Tightening torque	‌0.6 Nm
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition
Overvoltage category	III

Material properties

Specifications and approvals

PROFINET	No
Specifications	IEC 61076-2-101
