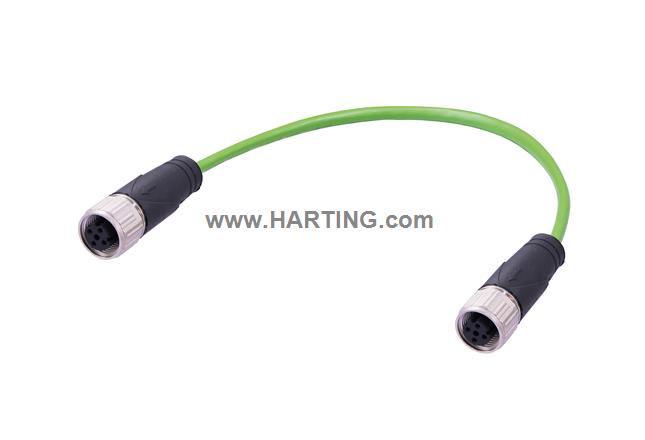

M12 D-coded Cable Assembly

Article No.: 21 34 939 3477 015

Image is for illustration purposes only. Please refer to product description.

Cable assemblies

Article No.: 21 34 939 3477 015

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on both sides

Copper cable (round)

Cable length: 1.5 m

Parts list specification

Type of cable	(4xAWG22/7) Cat 5e PUR trailling Show details
Connector 1	M12 D-code female straight overmolded Show details
Connector 2	M12 D-code female straight overmolded Show details

Identification

Version

Technical characteristics

Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s

Material properties

Material (cable)	PUR (polyurethane)
Colour (cable)	Green
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Specifications	UN/ECE-R 118 fire protection for rolling stock

Commercial data

Packaging size	1
Net weight	113 g
Country of origin	Germany
European customs tariff number	85444290
GTIN	5713140248151
eCl@ss	27060390 Ready-made data cable (unspecified)
ETIM	EC002599
UNSPSC 24.0	26121600
